FHLF202-9 Bearing Flange Narrow Steel 2-Bolt 9/16"inch
UPC: 00193019227572
Type: Flange Light Duty 2 Bolt Unit
Shaft Diameter: 9/16" inch
Bolt Size: 1/4" inch
Bearing No: FH202-9

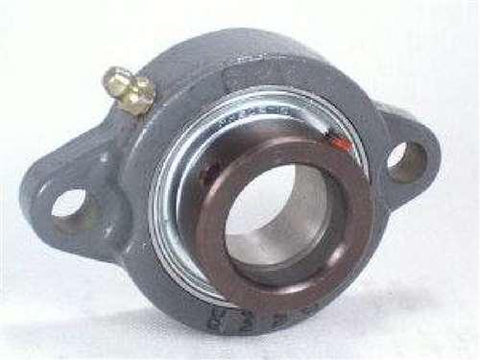

FHLF202-9 Flange Bearing - 2-Bolt Narrow Style
✔️ 9/16" ID - Light Duty Eccentric Lock, Cast Housing
The FHLF202-9 is a light-duty flange mount bearing unit featuring a 2-bolt narrow-body design and a 9/16" inner diameter. Constructed with a high-grade cast iron housing and a pre-lubricated ball bearing insert, it’s ideal for compact installations where space is limited. The unit includes an eccentric locking collar for quick shaft attachment and non-relubricatable, sealed bearing operation.
✅ Type: Light-duty flange mount bearing (2-bolt)
✅ Shaft diameter: 9/16"
✅ Locking method: Eccentric locking collar
✅ Housing material: Cast iron
✅ Seal type: RST full metal shroud seals (non-relubricatable)
✅ Bolt size: 1/4"
✅ Bearing number: FH202-9
✅ Housing number: LF-203-H
✅ Quantity: 1 assembled unit

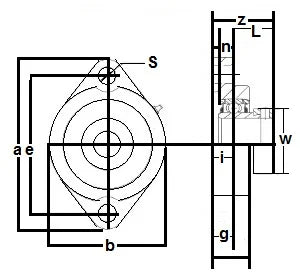

Unit Dimensions (inches):
| a | e | i | g | l | s | b | Z | L | n | W |
|---|---|---|---|---|---|---|---|---|---|---|
| 3-3/16" | 2-1/2" | 3/8" | 3/8" | 23/32" | 5/16" | 2-7/32" | 1-1/4" | 1-1/8" | 1/4" | 1-1/8" |
💡 What role does eccentric locking play in maintaining concentricity under dynamic loads?
Eccentric locking collars apply uniform radial pressure to the shaft, reducing vibration and slippage while maintaining concentric alignment. This minimizes shaft wear and misalignment, particularly under variable or reversing load conditions.
