1-1/2" Bore Bearing UCFL208-24 + 2-Bolt Flanged Housing Mounted Bearing
UPC: 00193019045374
Type: Mounted Bearings
Bolt Size: 1/2" Inch
Basic Load Dynamic (Cr): 29,100 N
Basic Load Static (Cor): 17,800 N

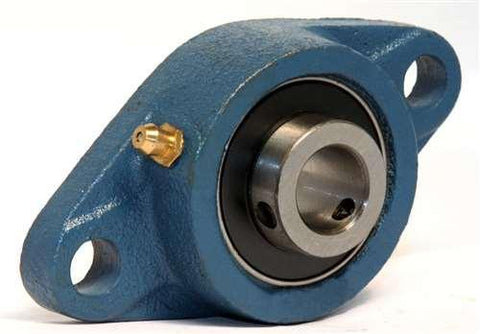

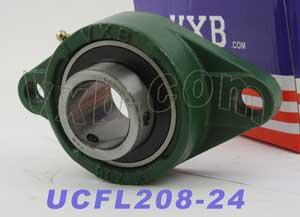

UCFL208-24 Mounted Bearing
✔️ 1 1/2" ID - 2-Bolt Flange - Heavy Duty Design
The UCFL208-24 is a mounted bearing unit with a 1 1/2" inner diameter and a two-bolt flange housing. Built for strength and stability, it's ideal for conveyors, agricultural equipment, and industrial machinery requiring secure shaft support.
✅ Shaft Diameter: 1 1/2" Inch
✅ Type: Mounted Bearing with 2-Bolt Flange
✅ Bearing Number: UC208-24
✅ Bolt Size: 1/2" Inch
✅ Dynamic Load Rating: 29,100 N
✅ Static Load Rating: 17,800 N
✅ Quantity: 1 Bearing

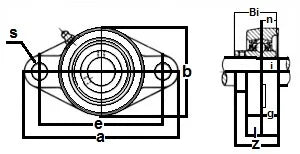

Dimensions (Inches):
| a | e | i | g | l | s | b | z | Bi | n |
|---|---|---|---|---|---|---|---|---|---|
| 6-7/8" | 5-43/64" | 53/64" | 9/16" | 1-13/32" | 5/8" | 3-15/16" | 2-1/64" | 1-15/16" | 3/4" |
💡 What are the advantages of using mounted flange bearings?
-
They provide stable shaft alignment and easy bolt-on installation in various frameworks.
-
Designed for high radial loads, making them great for conveyor systems and machinery.
-
The UC insert bearing allows for relubrication and reliable long-term operation.
A rugged flange-mounted solution for demanding, high-load mechanical applications.
