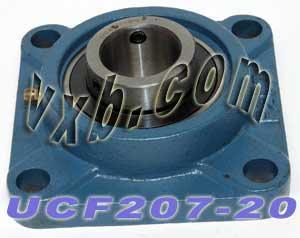

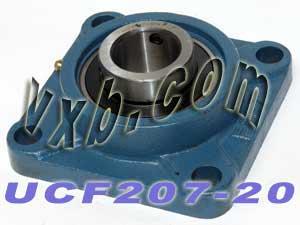

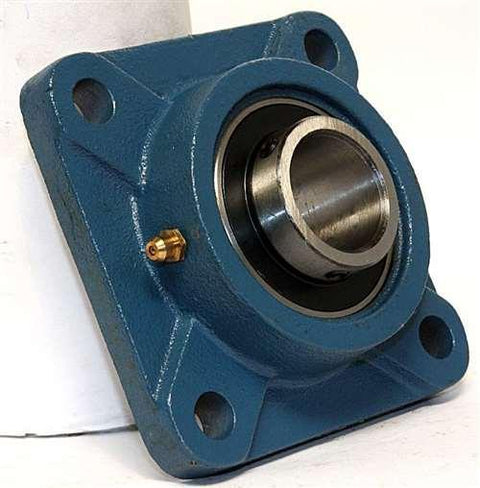

1-1/4" Bearing UCF-207-20 + Square Flanged Housing Mounted Bearing
UPC: 00193019052433
Type: Flange Mounted Bearing
Bolt Size: 3/8" inch
Shaft Diameter: 1 1/4" inch
Basic Load (Cr): 25.7 KN
UCF-207-20 Four Bolt Flange Bearing Unit - Set Screw Type
✔️ 1 1/4" Bore - UC207-20 Insert with F207 Housing
The UCF-207-20 is a heavy-duty flange-mounted bearing unit featuring a 1 1/4 inch inner diameter and a set screw locking mechanism for secure shaft connection. Built with a four-bolt square flange housing, this unit is perfect for use in conveyors, ag equipment, and heavy machinery where solid shaft support and alignment are needed. Sold as one complete unit.
✅ Shaft diameter: 1 1/4 inch
✅ Set screw locking style for secure shaft hold
✅ Bearing insert: UC207-20
✅ Housing: F207 four-bolt flange
✅ Bolt size: 3/8 inch
✅ Dynamic load rating (Cr): 25.7 kN
✅ Static load rating (Cor): 15.4 kN
✅ Pack size: 1 bearing unit

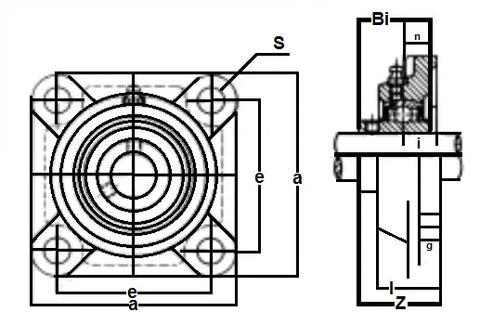

Dimensions Table (in inches):
| a | e | i | g | l | s | z | Bi | n |
|---|---|---|---|---|---|---|---|---|
| 4-19/32" | 3-5/8" | 3/4" | 5/8" | 1-11/32" | 35/64" | 1-3/4" | 1-11/16" | 11/16" |
💡 Why use a four-bolt flange bearing with a set screw locking type?
These units are perfect when you need secure, easy-to-service shaft support.
-
Set screw locks directly to the shaft, no adapter required
-
Four-bolt mount provides maximum stability
-
Great for moderate to high-load industrial applications
-
Used in fans, conveyors, and agricultural equipment
Solid, simple, and built to hold, grab the UCF-207-20 and give your shaft setup the rock-solid support it needs.
