1" inch Stud-Type Ball Transfer Unit SBT-1-CS 3/8" Threaded Stem Bearing
UPC: 00193019083451
Type: Ball Transfer unit
Threaded stem size: 3/8" Inch
Ball Material: Carbon Steel
Housing Material: Carbon Steel

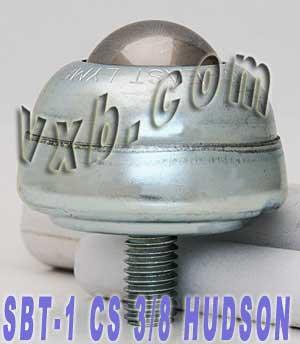

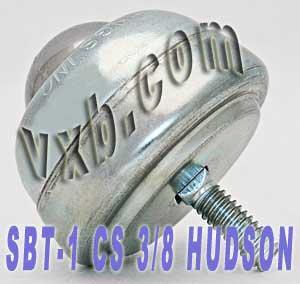

SBT-1 CS 3/8" Stud-Mounted Ball Transfer Unit
✔️ 1" Carbon Steel Ball on 3/8" Threaded Stem
The SBT-1 CS is a heavy-duty, stud-mounted ball transfer unit with a 1" main ball that rides on 80 support bearings. Designed for conveyor systems, material handling tables, and custom transport fixtures, it's made in the USA and supports up to 75 lbs per unit with smooth, low-torque motion.
✅ Main ball diameter: 1 inch (carbon steel)
✅ Threaded stem: 3/8 inch
✅ Housing: Carbon steel with hardened, plated support cup
✅ Contains (80) 1/8" support bearings
✅ Load capacity: 75 lbs
✅ Includes protective cover for long-lasting performance
✅ Pack size: 1 unit
✅ Made in the USA

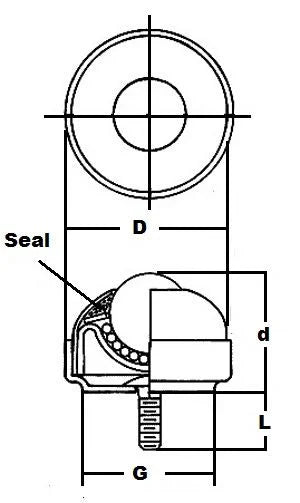

Table of Dimensions (Inches):
| d | D | L | G |
|---|---|---|---|
| 1 3/8" | 1 3/4" | 11/16" | 1 13/32" |
💡 What are stud-mounted ball transfer units used for in transport systems?
These units help move heavy items in tight setups with minimal push.
-
Used in conveyors, cargo tables, and assembly jigs
-
Allow multidirectional movement with low effort
-
Steel build handles rugged industrial use
-
Stud mount design makes installation quick and clean
If your workbench or table needs smoother loading and moving, this little roller will carry the weight. Try it and see your workflow glide like never before.
