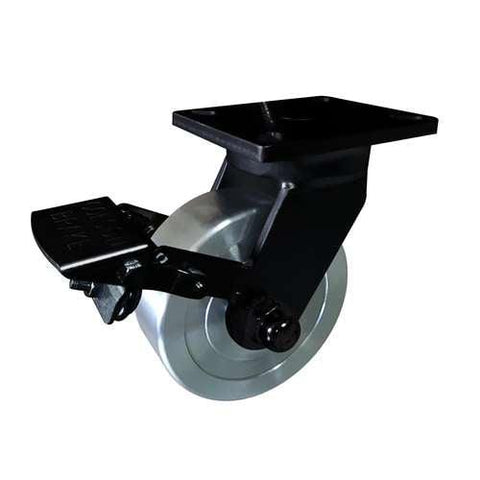

10"inch Caster Wheel 3307 Lbs - Brake Cast iron PU - Top Plate Mount
$839.44 CAD
$1,133.25 CADyou save $293.81 CAD
SKU: VXB009C250BFSB
UPC: 0
UPC: 0
Wheel Diameter= 10" Inch" inch=250mm
Load Capacity=3307 lb
Mounting Type= Top Plate
Mounting= Swivel and Upper Brake
Tire= Cast iron polyurethane
Load Capacity=3307 lb
Mounting Type= Top Plate
Mounting= Swivel and Upper Brake
Tire= Cast iron polyurethane
10" Inch Caster Wheel 3307 pounds Swivel and Upper Brake Cast iron polyurethane Top Plate
VXB009C250BFSB
Extra Heavy Duty
Wheel Diameter= 250mm
Wheel Width= 75mm
Wheel Diameter= 10" Inch = 250mm
Overall Height= 320mm
Overall Height Inch= 12.598"
Mounting Type= Top Plate
Top Plate Size= 200mm x 153mm Top Plate: 14mm+housing: 10mm
Hole distance= 160mm x 90mm
Wheel Core= Cast iron polyurethane
Tire= Cast iron polyurethane
Bearing type= Precision double ball bearing
Load Capacity= 3307 lb
Mounting= Swivel and Upper Brake
Temperature Range= -40 to 180 F
Moves large items quicker using the VXB009C250BFSB. And rolling on wheel that has 250mm diameter/9.843" inch. The thickness of the wheel is 75mm or 2.953" inch. The caster dimensions heightwise is 320mm/12.598" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 200mm x 153mm Top Plate: 14mm+housing: 10mm and holes distance of 160mm x 90mm. The Precision double ball bearing design will enable the Cast iron polyurethane tire to roll easily with a core made from Cast iron polyurethane. Bearing in mind that every caster wheel has the load capacity of 3307 lb with a Swivel and Upper Brake type. Temperature range is -40 to 180 F. Buy our VXB009C250BFSB, we wish all the best.
