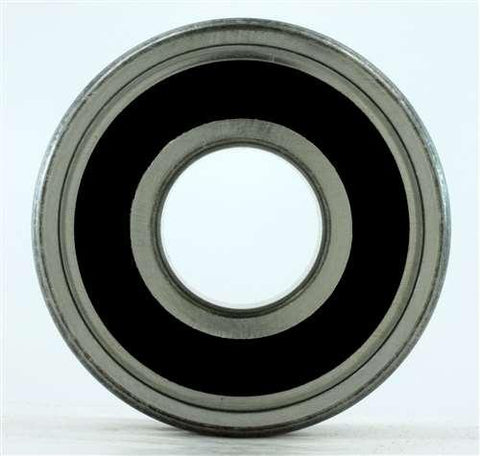

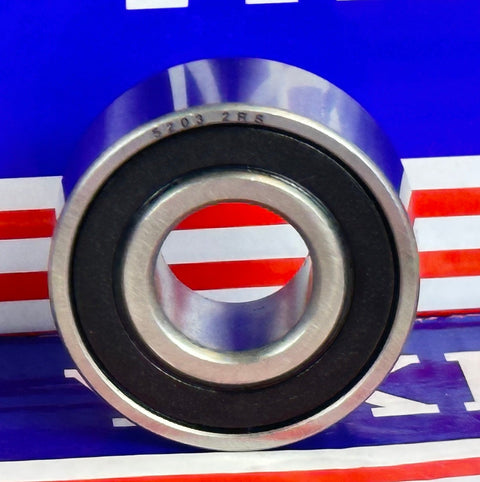

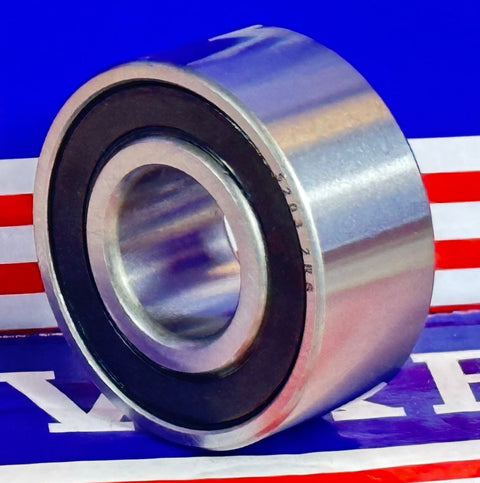

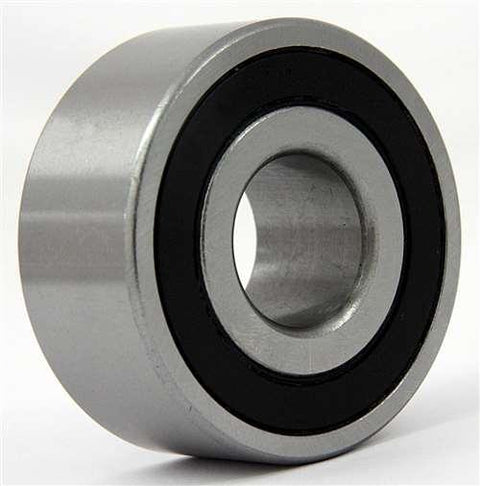

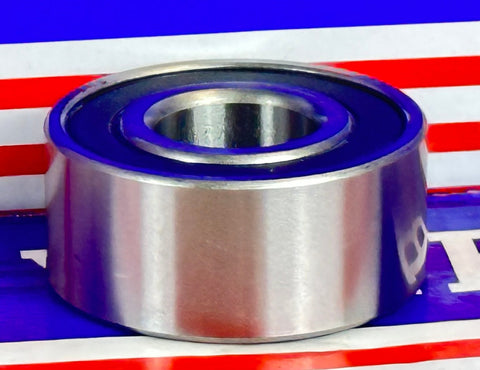

5203-2RS Bearing - Angular Contact - Sealed 17x40x17.5mm

5203-2RS Angular Contact Ball Bearing
✔️ 17mm x 40mm x 17.5mm - Double Row, Rubber Sealed

The 5203-2RS is a double-row angular contact ball bearing designed to handle both radial and axial loads from either direction. Made from durable chrome steel, it features dual rubber seals for maximum protection and is pre-lubricated with grease for smooth, long-lasting operation.

✅ Size: 17mm ID x 40mm OD x 17.5mm Width
✅ Type: Double-row angular contact bearing
✅ Two rubber seals (2RS) for dust and moisture resistance
✅ Material: Chrome steel for durability and high performance
✅ Pre-lubricated with grease - maintenance-free
✅ Dynamic load rating: 15,000 N
✅ Static load rating: 9,250 N
✅ Max speed (grease): 12,000 RPM
✅ Quantity: 1 bearing

📏 Dimensions Table (Metric):

💡 Why choose an angular contact bearing like the 5203-2RS?
Angular contact bearings can handle both radial and axial loads simultaneously, making them ideal for applications like pumps, gearboxes, and motors where stability and alignment are critical.

A strong, sealed bearing built for balanced load support and reliable rotation.
