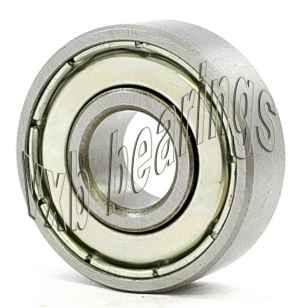

6202-Z Ball Bearing One Shield ID 15mm OD 35mm Width 11mm
UPC: 00193019001189
Brand : VXB
Type : Deep groove ball bearings
Inner (ID) : 15mm
Outer (OD) : 35mm
Single Shield Ball Bearing 15mm x 35mm x 11mm
✔️ 6202-Z - Deep Groove, Single Row, Pre-Lubricated
The 6202-Z is a deep groove ball bearing with a single metal shield on one side, allowing protection from debris while maintaining low rolling resistance. With a 15mm inner diameter, 35mm outer diameter, and 11mm width, it’s a solid pick for electric motors, pumps, and general machinery. Ships as one bearing.
✅ Pack size: 1 bearing
✅ Inner diameter: 15mm (0.591")
✅ Outer diameter: 35mm (1.378")
✅ Width: 11mm (0.433")
✅ Shield type: Single metal shield (Z)
✅ Bearing type: Deep groove, single row
✅ Dynamic load rating: 8.06 kN
✅ Static load rating: 3.75 kN
✅ Pre-lubricated for smooth rotation
Dimension Table:
| Inside (ID) | Outside (OD) | Width |
|---|---|---|
| 15mm (.591") | 35mm (1.378") | 11mm (.433") |
💡 Why choose a single shield (Z-type) ball bearing for your build?
Single shield bearings offer a balance between protection and speed:
-
Keeps one side sealed against debris or splash
-
Open side allows better ventilation or custom lubrication
-
Great for systems with internal grease flow
-
Works well in motors and pump housings
Ready for rotation and built to last, throw one in your cart and keep things running steady!
