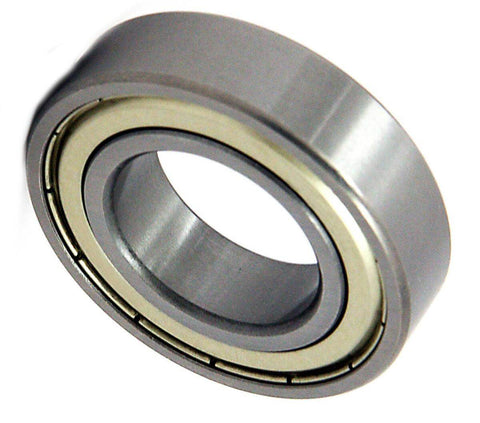

6308ZZC3 Metal Shielded Electric Motor Quality Ball Bearing 40x90x23mm

6308ZZC3 Bearing, inner diameter is 40mm, outer diameter is 90mm, width is 23mm.

• 6308ZZC3 Ball Bearing
• Electric Motor Quality Ball Bearing
• Closures: Double metal shields (ZZ) for added protection
• Clearance: C3 (increased internal clearance for higher speed or thermal expansion)
• Dimensions: 40mm x 90mm x 23mm/Metric
• ID (inner diameter)/Bore: 40mm
• OD (outer diameter): 90mm
• Width: 23mm
• Size: 40 x 90 x 23 mm
• Quantity: 1 Bearing
• Dynamic load rating Cr: 40,500 N
• Static load rating Cor: 24,100 N
• Limiting Speed:
  • Grease Lubrication: 7,800 RPM
