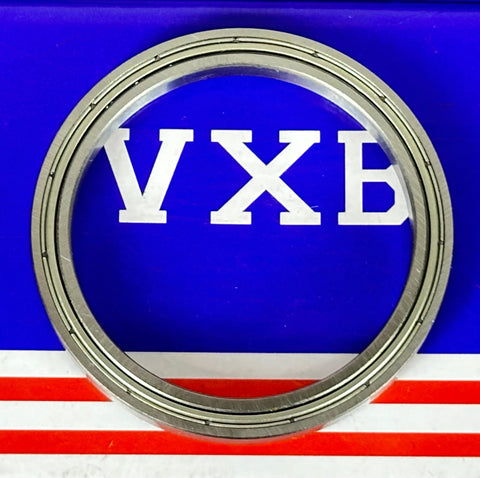

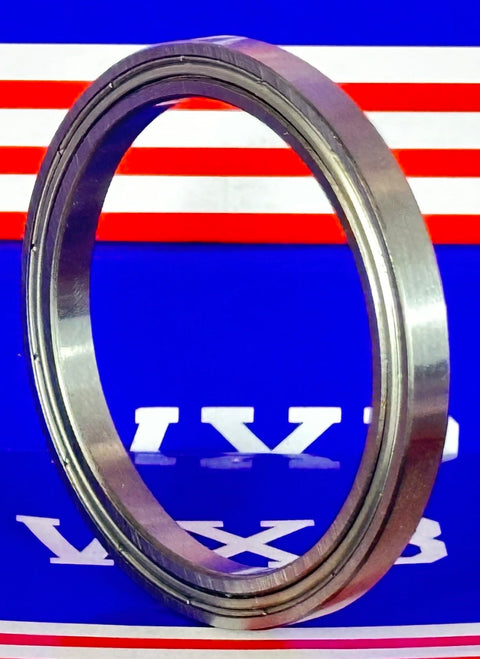

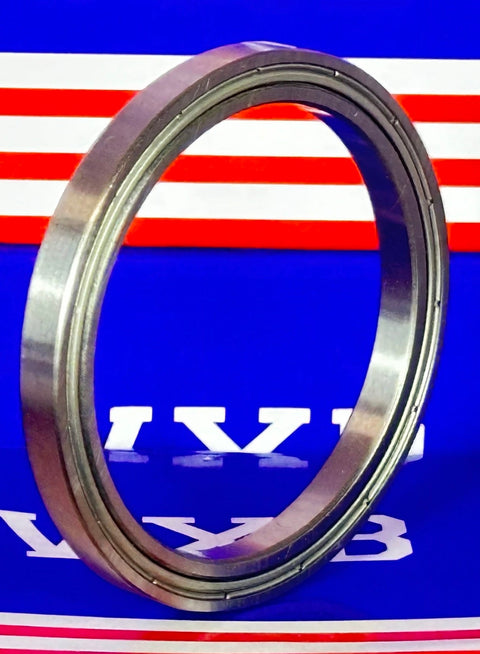

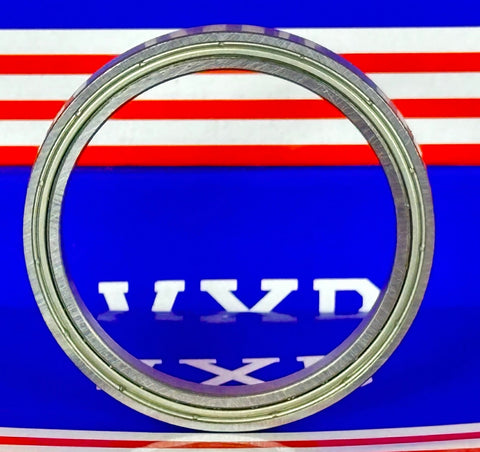

6710ZZ Thin Section Shielded Ball Bearing 50x62x6mm
UPC: 00193019015162
Type: Deep Groove Ball Bearing
Style: Slim section, low profile
Standard: Metric
Closed: Metal Shields
6710ZZ Thin Section Shielded Ball Bearing - Slim Profile
✔️ 50mm x 62mm x 6mm - Chrome Steel, Low Friction, Compact Design
The 6710ZZ is a slim-section deep groove ball bearing from the 67xx series, designed for applications where space and weight savings are crucial. With a narrow 6mm profile, durable chrome steel construction, and double metal shields, it offers smooth, low-friction rotation while protecting against debris. Ideal for robotics, automation, and lightweight rotary assemblies where performance and precision must be packed into minimal space.
✅ Size: 50mm ID x 62mm OD x 6mm width
✅ Type: Deep groove ball bearing
✅ Series: 67xx slim section, low profile
✅ Material: Chrome steel (52100 alloy)
✅ Closures: Double metal shields (ZZ)
✅ Lubrication: Pre-lubricated with grease
✅ Standard: Metric
✅ Quantity: 1 bearing
💡 Why choose thin section bearings like 6710ZZ?
They allow for compact mechanical designs without compromising stability or speed - perfect for tight spaces in drones, 3D printers, and motion control systems.
🔍 Comparison Table: 6710ZZ vs. Similar 50mm ID Bearings
| Bearing | Inner Ø | Outer Ø | Width | Profile | Load Capacity | Best Use Case |
|---|---|---|---|---|---|---|
| 6710ZZ | 50mm | 62mm | 6mm | Extra Thin | Low | Lightweight, compact, low-friction apps |
| 6810ZZ | 50mm | 65mm | 7mm | Thin | Medium | Slim but stronger than 67xx |
| 6910ZZ | 50mm | 72mm | 12mm | Medium Thin | Higher | Higher loads, mid-profile applications |
| 6010ZZ | 50mm | 80mm | 16mm | Standard | High | Electric motors, HVAC, conveyors |
| 6210ZZ | 50mm | 90mm | 20mm | Heavy-Duty | Very High | Industrial machinery, pumps |
| 6310ZZ | 50mm | 110mm | 27mm | Extra Robust | Extra High | Heavy-load mechanical systems |
| 6410ZZ | 50mm | 130mm | 31mm | Ultra Heavy | Max Capacity | Extreme-duty shafts, gearboxes |
🔧 Summary:
-
🪶 6710ZZ: Choose when space and speed matter most.
-
⚖️ 6810ZZ-6910ZZ: Great middle ground - slim but stronger.
-
💪 6010ZZ+: For robust machines requiring long life and high load capacity.
Select based on your balance between space, weight, and strength.
