7001C P5 ABEC-5 Quality High Precision Angular Contact Bearing 12x28x8mm
7001C P5 ABEC-5 Quality High Precision Angular Contact Bearing 12x28x8mm
VXB

7001C P5 ABEC-5 Quality High Precision Angular Contact Bearing 12x28x8mm


$76.13 CAD $102.76 CADyou save $26.63 CAD
SKU: 7001CP5-ABEC-5
UPC: 00193019170731
Item: 7001C P5 High Precision ABEC-5
Type: Angular Contact Ball Bearing
Dimensions: 12mm x 28mm x 8mm/Metric
Bearing Inner Diameter: 12mm
Bearing Outer Diameter: 28mm

7001C P5 High Precision Angular ABEC-5 Ball Bearing
12mm x 28mm x 8mm
15 degrees Contact Angle
PA66+ 30% NTE264B Cage

7001C P5 High Precision Angular Ball Bearing, 15 degrees Contact Angle ABEC-5 Quality, 7001C inner diameter is 12mm, outer diameter is 28mm, width is 8mm.

  • 7001C P5 Angular Contact Ball Bearing
  • High precision Angular Ball Bearing
  • Dimensions: 12mm x 28mm x 8mm/Metric
  • Bearing Inner Diameter: 12mm
  • Bearing Outer Diameter: 28mm
  • Bearing Width: 8mm
  • Size: 12 x 28 x 8 mm
  • Cage: PA66+ 30% NTE264B cage
  • Quality: ABEC-5 (P5)
  • Basic Dynamic Load Cr (KN): 5.80
  • Quantity: 1 Bearing

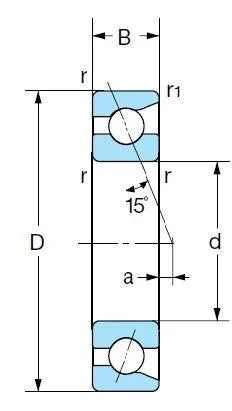

d D B r r1
12mm 28mm 8mm 0.3 0.15


💡 What Does ABEC-5 Mean?

ABEC-5 is a precision rating from the Annular Bearing Engineers’ Committee (ABEC), indicating that the bearing is manufactured with tighter tolerances for improved accuracy and performance.

Bearings rated ABEC-5 are designed for high-speed, low-friction operation, making them ideal for electric motors, precision tools, 3D printers, and performance equipment where smooth rotation and long service life are essential.
