7007C P5 ABEC-5 Quality Angular Contact Bearing 35x62x14mm
UPC: 00193019170892
Type: Angular Contact Ball Bearing
Dimensions: 35mm x 62mm x 14mm/Metric
Bearing Inner Diameter: 35mm
Bearing Outer Diameter: 62mm

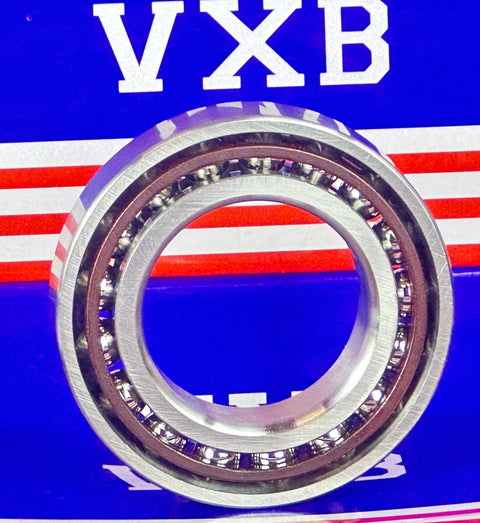

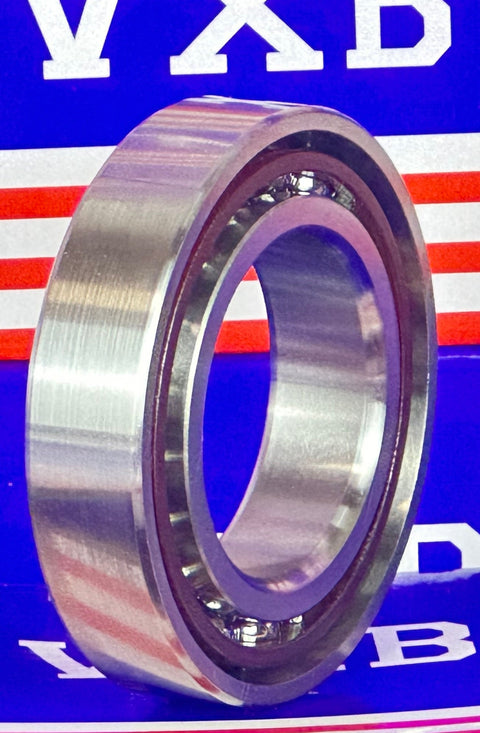

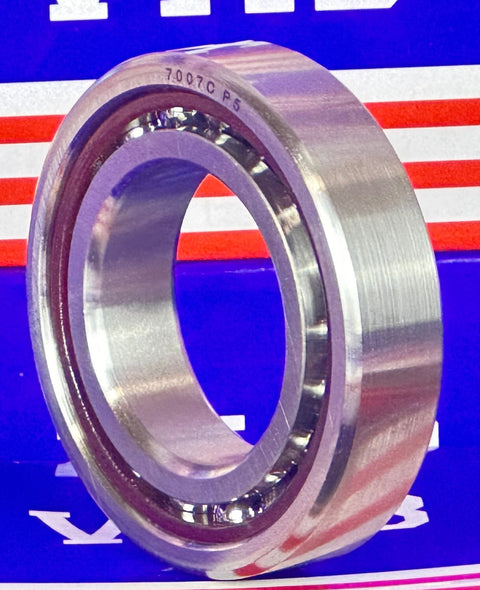

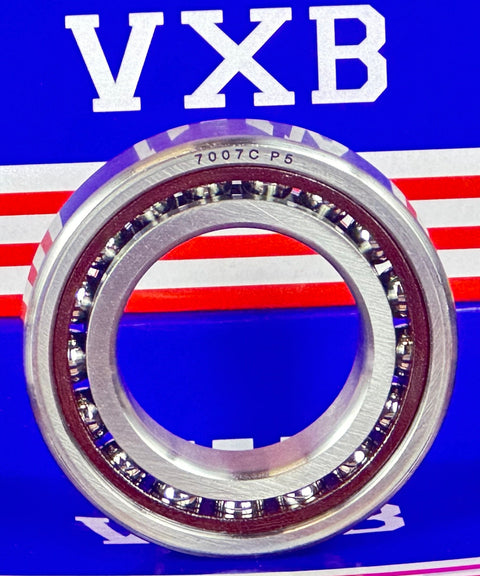

7007C P5 Angular Contact Ball Bearing
āļø ABEC-5 Precision - 35mm x 62mm x 14mm - 15° Contact Angle
The 7007C P5 is a high-precision angular contact bearing with a 15° contact angle, ideal for fast-moving, high-accuracy gear like CNC spindles, routers, and 3D printers. Itās rated ABEC-5 and uses a PA66+30% NTE264B cage for stable, low-vibration performance at higher loads.
ā
Size: 35mm ID x 62mm OD x 14mm width
ā
ABEC-5 rating (P5 class) for tight tolerances
ā
Contact angle: 15° for axial and radial support
ā
Cage: PA66 + 30% NTE264B reinforced polymer
ā
Dynamic load rating: 19,300 N
ā
Static load rating: 17,500 N
ā
Pack Size: 1 Bearing

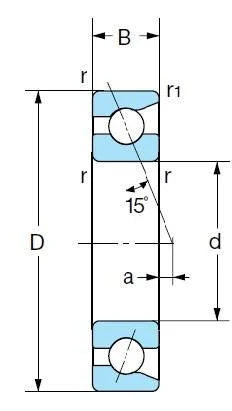

Dimensions Table:
ID (d) | OD (D) | Width (B) |
---|---|---|
35mm | 62mm | 14mm |
š” What makes angular contact bearings with 15° angles good for precision work?
Theyāre built to take on both axial and radial forces with high accuracy. Hereās the edge:
-
Delivers precise, stable rotation at high RPM
-
Supports axial loads in one direction, great for paired mounting
-
Ideal for CNC spindles, routers, and precision equipment
-
ABEC-5 rating ensures minimal play and quiet operation
If your gear needs to spin fast, smooth, and tight, this oneās built for it. Add it to your setup and let precision do the work!
