7008C P5 High precision Angular Contact Bearing 40x68x15 ABEC-5 Bearing

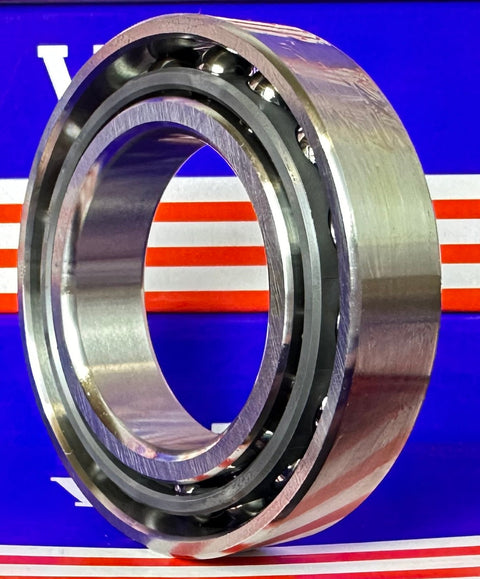

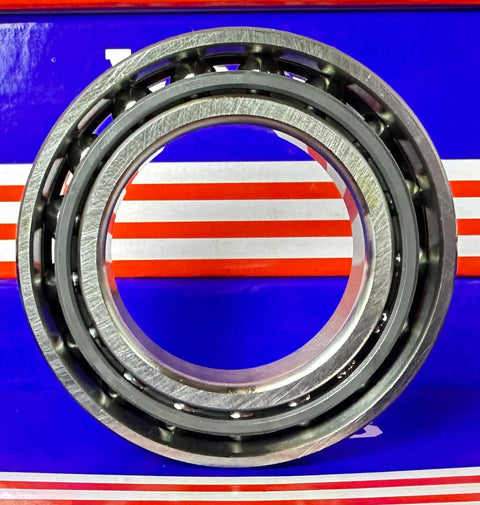

High Precision 7008C P5 Angular Contact Bearing
✔️ 15° Contact Angle - ABEC-5 Rating - 40x68x15mm

The 7008C P5 angular contact bearing is a high-speed, high-accuracy bearing made for demanding precision jobs. With a 15° contact angle and ABEC-5 grade, this single-row bearing handles both radial and axial loads with stability. It’s great for CNCs, spindles, robotics, and anything that needs tight tolerances and smooth motion.

✅ Size: 40mm ID × 68mm OD × 15mm Width
✅ Contact Angle: 15° (Type C)
✅ Cage: PA66 + 30% NTE264B
✅ Quality: ABEC-5 (P5 grade for high precision)
✅ Quantity: 1 Bearing
✅ Dynamic Load Rating Cr: 20,700 N
✅ Static Load Rating Cor: 16,000 N
✅ Max Speed Grease: 15,000 RPM
✅ Max Speed Oil: 20,000 RPM

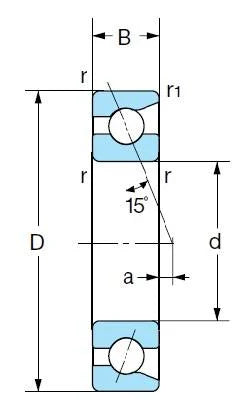

✅ Radius (r): 1mm - (r1): 0.6mm - (a): -1.3mm

💡 What’s the difference between angular contact and standard ball bearings?
Angular contact bearings are built to support both axial and radial loads. They’re perfect when you need:

• High-speed rotation with tight shaft alignment

• Thrust handling in one direction (or both when paired)

• Stability in CNCs, motors, or high-precision assemblies

• Tighter tolerances than typical deep groove bearings

When the job calls for clean, consistent accuracy, this one delivers. Add it to your setup and get ready for smoother performance.
