7011C P5 ABEC-5 Quality High Precision Angular Contact Bearing 55x90x18mm
7011C P5 ABEC-5 Quality High Precision Angular Contact Bearing 55x90x18mm
VXB

7011C P5 ABEC-5 Quality High Precision Angular Contact Bearing 55x90x18mm


$190.34 CAD $256.94 CADyou save $66.60 CAD
SKU: 7011CP5-ABEC-5
UPC: 00193019170977
Item: 7011C P5 High Precision ABEC-5
Type: Angular Contact Ball Bearing
Dimensions: 55mm x 90mm x 18mm/Metric
Bearing Inner Diameter: 55mm
Bearing Outer Diameter: 90mm

7011C P5 High Precision Angular ABEC-5 Ball Bearing
55mm x 90mm x 18mm
15 degrees Contact Angle
PA66+ 30% NTE264B Cage

7011C P5 High Precision Angular Ball Bearing with a 15 degree contact angle, ABEC-5 rating. The 7011C has an inner diameter of 55mm, outer diameter 90mm, and width 18mm.

  • 7011C P5 Angular Contact Ball Bearing
  • High Precision Angular Ball Bearing
  • Dimensions: 55mm x 90mm x 18mm/Metric
  • Bearing Inner Diameter: 55mm
  • Bearing Outer Diameter: 90mm
  • Bearing Width: 18mm
  • Size: 55 x 90 x 18 mm
  • Cage: PA66+ 30% NTE264B cage
  • Quality: ABEC-5 (P5)
  • Basic Dynamic Load Cr: 36,700 N
  • Basic Static Load Cor: 37,100 N
  • Quantity: 1 Bearing

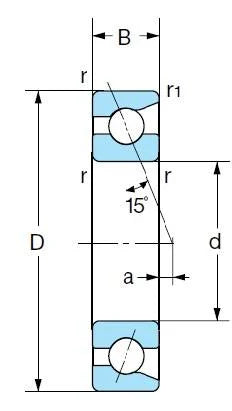

d D B
55mm 90mm 18mm


💡 What Does ABEC-5 Mean?

ABEC-5 is a precision rating from the Annular Bearing Engineers’ Committee (ABEC), indicating that the bearing is manufactured with tighter tolerances for improved accuracy and performance.

Bearings rated ABEC-5 are designed for high-speed, low-friction operation, making them ideal for electric motors, precision tools, 3D printers, and performance equipment where smooth rotation and long service life are essential.
