7015C P5 ABEC-5 Quality Angular Contact Bearing 75x115x20mm
7015C P5 ABEC-5 Quality Angular Contact Bearing 75x115x20mm
VXB

7015C P5 ABEC-5 Quality Angular Contact Bearing 75x115x20mm


$190.34 CAD $256.94 CADyou save $66.60 CAD
SKU: 7015CP5
UPC: 00193019171073
Item: 7015C P5High Precision ABEC-5
Type: Angular Contact Ball Bearing
Dimensions: 75mm x 115mm x 20mm/Metric
Bearing Inner Diameter: 75mm
Bearing Outer Diameter: 115mm

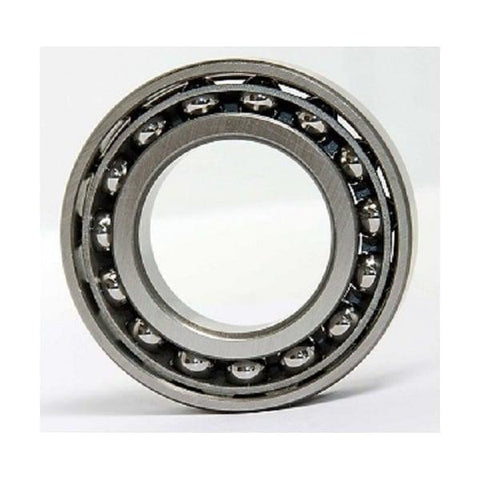

7015C P5 High Precision Angular ABEC-5 Ball Bearing
75mm x 115mm x 20mm
15 degrees Contact Angle
PA66+ 30% NTE264B Cage

7015C P5 High Precision Angular Ball Bearing with a 15 degree contact angle, ABEC-5 rating. The 7015C has an inner diameter of 75mm, outer diameter 115mm, and width 20mm.

  • 7015C P5 Angular Contact Ball Bearing
  • High Precision Angular Ball Bearing
  • Dimensions: 75mm x 115mm x 20mm/Metric
  • Bearing Inner Diameter: 75mm
  • Bearing Outer Diameter: 115mm
  • Bearing Width: 20mm
  • Size: 75 x 115 x 20 mm
  • Cage: PA66+ 30% NTE264B cage
  • Quality: ABEC-5 (P5)
  • Basic Dynamic Load Cr: 51,300 N
  • Basic Static Load Cor: 59,200 N
  • Quantity: 1 Bearing

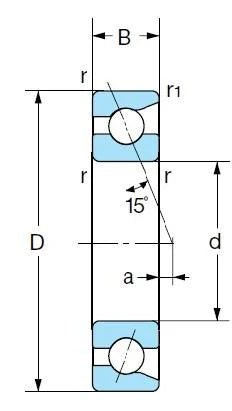

d D B
75mm 115mm 20mm


💡 What Does ABEC-5 Mean?

ABEC-5 is a precision rating from the Annular Bearing Engineers’ Committee (ABEC), indicating that the bearing is manufactured with tighter tolerances for improved accuracy and performance.

Bearings rated ABEC-5 are designed for high-speed, low-friction operation, making them ideal for electric motors, precision tools, 3D printers, and performance equipment where smooth rotation and long service life are essential.
