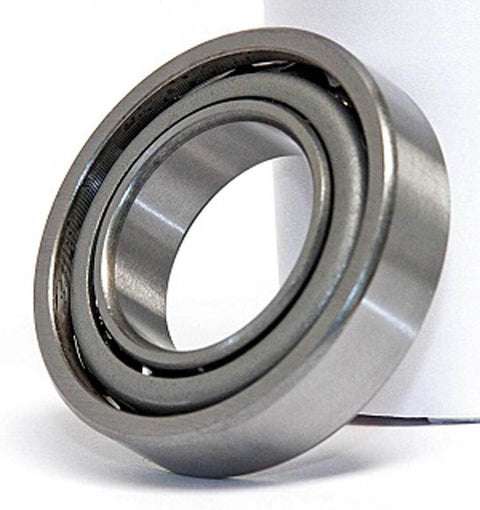

7202C ABEC 7 Angular Contact High Precision Bearing 15x35x11mm
7202C ABEC 7 Angular Contact High Precision Bearing 15x35x11mm
VXB

7202C ABEC 7 Angular Contact High Precision Bearing 15x35x11mm


$133.23 CAD $179.86 CADyou save $46.63 CAD
SKU: 7202C-ABEC7-BEARING
UPC: 00193019171448
Item: 7202C ABEC-7 Angular Contact Bearing 15x35x11





7202C ABEC-7l Angular Contact Bearing
15mm x 35mm x 11mm
15 Contact Angle

7202C P4 Angular Contact Bearing, inner diameter is 15mm, outer diameter is 35mm, width is 11mm.

  • 7202C Angular Ball Bearing
  • ABEC 7 Angular Ball Bearing
  • Quality: Abec 7 (P4)
  • Dimensions: 15mm x 35mm x 11mm/Metric
  • Bearing Inner Diameter: 15mm
  • Bearing Outer Diameter: 35mm
  • Bearing Width: 11mm
  • Size: 15mm x 35mm x 11mm
  • Basic Dynamic Load Cr (KN): 8.70
  • Quantity: 1 Bearing

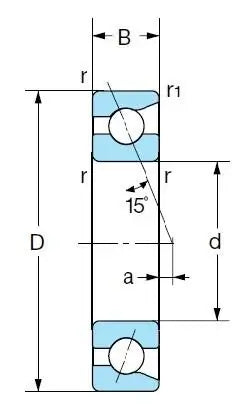

d D B r r1
15mm 35mm 11mm 0.6 0.3
