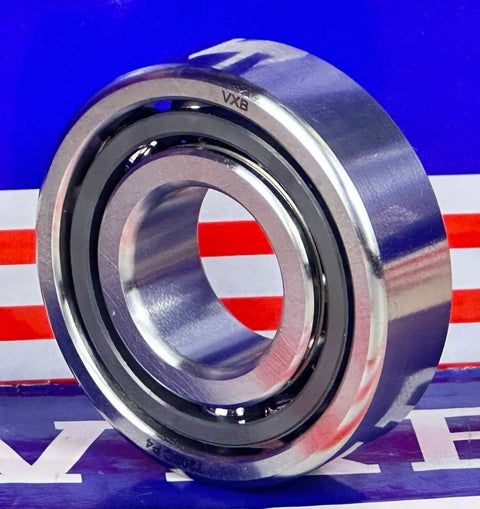

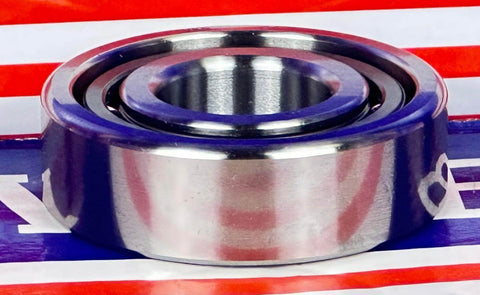

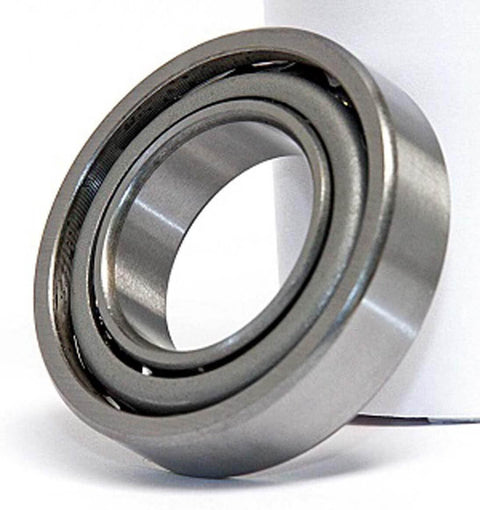

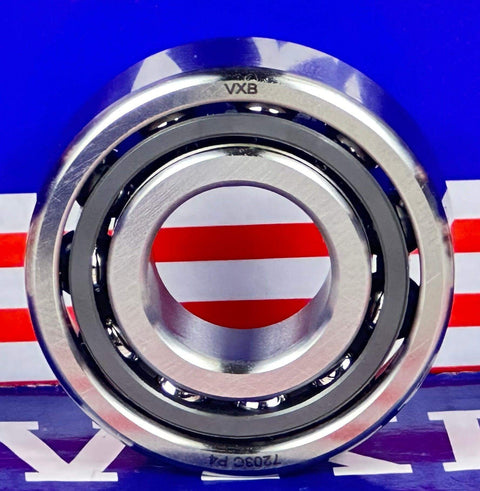

7203C P4 High precision Angular Contact Bearing ABEC-7 17x40x12mm
UPC: 00193019171462
Type: Angular Contact Ball Bearing
Cage: PA66+ 30% NTE264B
Quality: ABEC-7 (P4 quality)
Dimensions: 17mm x 40mm x 12mm/Metric
High Precision Ball Bearing 7203C P4
✔️ Angular Contact - 15° - ABEC-7 - 17x40x12mm
This 7203C P4 bearing is a high-performance angular contact ball bearing made for serious speed and precision. With a 15° contact angle and ABEC-7 tolerance, it’s perfect for demanding setups like CNC spindles, robotics, or high-speed machinery where accuracy matters.
✅ Type: Angular Contact Ball Bearing
✅ Contact Angle: 15 Degrees
✅ Precision Grade: ABEC-7 (P4)
✅ Dimensions: 17mm ID x 40mm OD x 12mm Wide
✅ Cage Material: PA66+ 30% NTE264B
✅ Dynamic Load: 11,300 N
✅ Static Load: 7,400 N
✅ Max Speed with Grease: 40,000 RPM
✅ Max Speed with Oil: 60,000 RPM
✅ Quantity: 1 Bearing

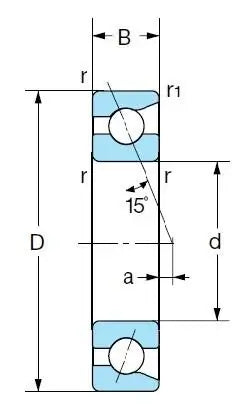

Dimensions Table:
| d (ID) | D (OD) | B (Width) |
|---|---|---|
| 17mm | 40mm | 12mm |
💡 What does ABEC-7 mean in a high-speed bearing?
ABEC-7 bearings are known for ultra-tight tolerances, making them ideal for extreme accuracy and speed.
-
Used in CNC spindles, electric motor assemblies, and precision robotics
-
Runs smoother and quieter at higher RPMs
-
Lower vibration means longer lifespan in precision builds
-
Rated for high-speed oil or grease operation
If you need a bearing that’s built to hit top speeds while keeping things rock steady, this ABEC-7 7203C P4 is a solid pick. Grab one and let precision do the talking.
