7901AC Angular Contact Ball Bearing 12x24x6mm


$38.06 CAD $51.37 CADyou save $13.31 CAD
SKU: 7901AC
UPC: 00193019016237
Item: 7901AC Ball Bearing
Type: Angular Contact Ball Bearing

Cage: Nylon
Dimensions: 12mm x 24mm x6mm/Metric

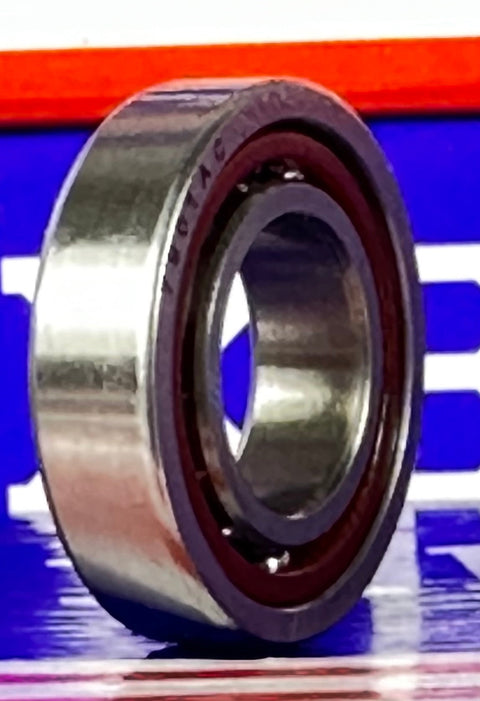

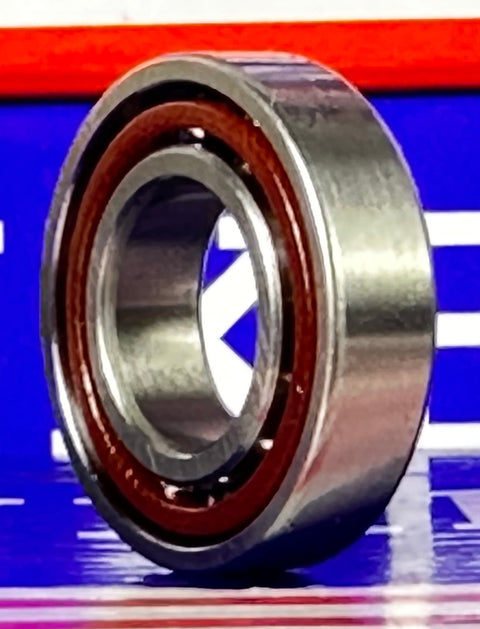

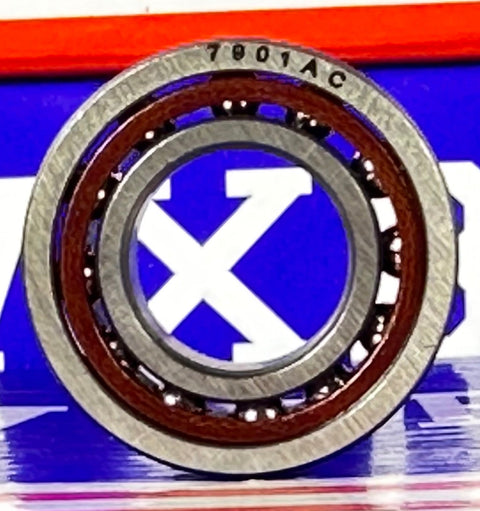

7901AC Angular Contact Bearing - 12mm ID x 24mm OD
✔️ Nylon Cage - 25° Contact Angle - 6mm Width

The 7901AC is a precision angular contact ball bearing built for high-speed and high-rigidity applications. With a 25-degree contact angle and a nylon cage, it's designed to handle axial loads in one direction along with radial forces, making it perfect for electric motors, spindles, and automation systems.

✅ Type: Angular contact ball bearing
✅ Contact angle: 25° (AC type)
✅ Cage material: Nylon for reduced friction
✅ Lubrication: Not included - apply grease or oil as needed
✅ Pack size: 1 bearing
✅ Use: High-speed rotating equipment and precision assemblies

Dimensions:

Inner Diameter Outer Diameter Width
12mm 24mm 6mm

💡 Why choose an angular contact bearing over a deep groove bearing?
Angular contact bearings are built to support axial loads in one direction with greater stiffness and speed capacity. They’re ideal for high-speed systems where precision and alignment matter most.

If you're looking to boost speed and accuracy in your build, this bearing gets the job done right. Try it out and feel the performance difference!
