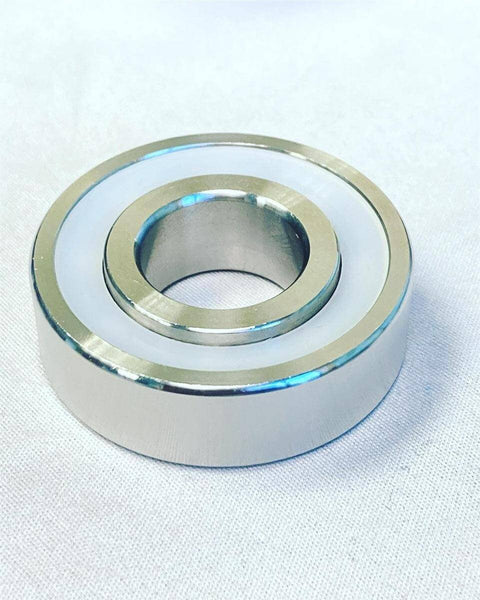

6203-2RS Stainless Steel Ball Bearing - Grade 316
UPC: 00193019318928
Item Sku : S6203-2RS-316
Type : Deep groove ball bearings single row
Material : 316 Stainless Steel
Inner (ID) : 17mm
6203-2RS Marine-Grade Stainless Steel Bearing
✔️ 17mm x 40mm x 12mm - 316 Stainless - Double Sealed
The 6203-2RS stainless steel bearing is engineered for tough, wet, and corrosive environments. Made from marine-grade 316 stainless steel, it offers excellent resistance to rust, chemicals, and saltwater exposure - perfect for marine, food-grade, and high-moisture applications.
✅ Type: Deep groove ball bearing - single row
✅ Inner Diameter: 17mm (0.669")
✅ Outer Diameter: 40mm (1.575")
✅ Width: 12mm (0.472")
✅ Material: 316 stainless steel (races, balls, and cage)
✅ Enclosure: 2RS - double rubber seals for added protection
✅ Dynamic Load Rating: 9.55 kN
✅ Static Load Rating: 4.8 kN
✅ Max Speed: 12,000 RPM
✅ Application: Marine equipment, food processing, chemical machinery
✅ Pack Size: 1 bearing
✅ Equivalent: S6203-2RS
Dimensions Table:
| Spec | Value |
|---|---|
| ID (Bore) | 17mm |
| OD | 40mm |
| Width | 12mm |
| Material | 316 Stainless Steel |
| Seals | 2RS - Double Sealed |
| Max RPM | 12,000 |
| Dynamic Load | 9.55 kN |
| Static Load | 4.8 kN |
💡 What makes 316 stainless steel ideal for marine-grade bearings?
316 stainless steel offers excellent corrosion resistance, especially in saltwater or acidic environments. It also withstands frequent washdowns, making it ideal for food handling, outdoor, and marine applications.
Whether you're out at sea or deep in the kitchen - this 6203-2RS bearing keeps your equipment spinning smooth and rust-free!
