S7202C Stainless Steel Angular Contact Ball Bearing 15x35x11mm
UPC: 00193019322598
S7202C Angular Contact Bearing - 15mm ID x 35mm OD
✔️ Stainless Steel - 15° Contact Angle - P5 Precision - 11mm Width
The S7202C is a stainless steel angular contact ball bearing designed for high-precision, high-speed applications. With a 15° contact angle and P5-grade accuracy, it delivers excellent axial and radial load support in compact motor assemblies, pumps, and spindles. Its stainless steel build provides superior corrosion resistance for demanding environments.
✅ Type: Angular contact ball bearing
✅ Contact angle: 15°
✅ Inner diameter: 15mm
✅ Outer diameter: 35mm
✅ Width: 11mm
✅ Material: Stainless steel
✅ Precision grade: P5
✅ Dynamic load rating (Cr): 8.70 kN
✅ Quantity: 1 bearing

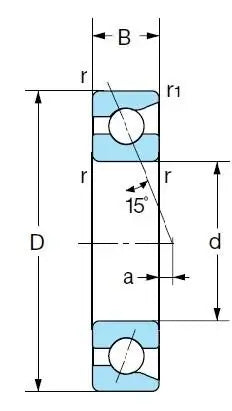

Dimensions:
| Inner Diameter | Outer Diameter | Width | Corner Radius r | r1 |
|---|---|---|---|---|
| 15mm | 35mm | 11mm | 0.6mm | 0.3mm |
💡 What makes angular contact bearings ideal for high-speed applications?
Angular contact bearings support both radial and unidirectional axial loads. Their specific contact angle enhances rigidity and speed performance, making them perfect for spindles, robotics, and precision drives.
If your setup calls for tight tolerances, high speed, and dependable load handling - this bearing's built to deliver. Add it to your system and let the performance speak for itself!
