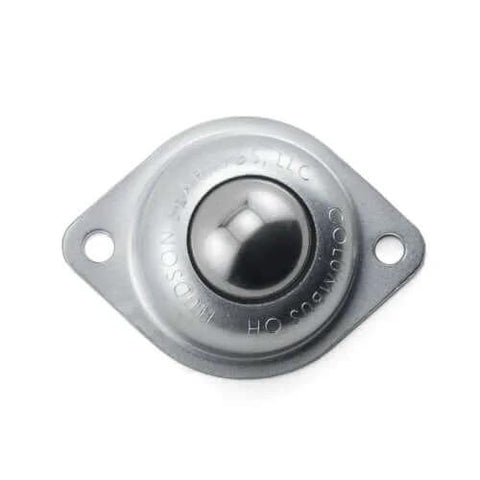

(Case of 10) Hudson Bearings BT-1CS Two-Hole Flange Mounted Ball Transfer, Carbon Steel, 1" Diameter, 75 lbs Load Capacity
$114.20 CAD
$190.35 CADyou save $76.15 CAD
SKU: VXB00EPLJ4IE
UPC: 00193019421383
UPC: 00193019421383
Hudson Bearings BT-1CS Two-Hole Flange-Mounted Ball Transfer, Carbon Steel, 1 in Diameter, 75 lb Load Capacity - Case of 10
✔️ Case of 10 flange-mounted ball transfers, 1 in main ball, 90 x 1/8 in (3.18 mm) diameter support balls, carbon steel housing with hardened/plated cups and protective cover for low torque
✅ Support balls: 90 × 1/8 in (3.18 mm) diameter
✅ Housing: carbon steel, flange-mounted two-hole pattern
✅ Ball cup: hardened and plated for durability
✅ Protective cover included for low torque and longevity
✅ Load rating: 75 lb (34 kg) per unit
✅ Plated carbon steel option for corrosion resistance
✅ Case of 10 units included
✅ Omnidirectional movement with a low-profile design
💡 What is a ball transfer unit used for in material handling and fixtures? Ball transfer units enable smooth omnidirectional movement of heavy objects on conveyors, fixtures, and workstations. - Enables easy directional changes without lifting - Handy for conveyors, fixtures, robotics, and automation lines - Reduces friction and torque for reliable operation - A practical alternative to bulky casters when a low profile is needed This handy setup boosts throughput and reliability in manufacturing, logistics, and automation tasks.
✔️ Case of 10 flange-mounted ball transfers, 1 in main ball, 90 x 1/8 in (3.18 mm) diameter support balls, carbon steel housing with hardened/plated cups and protective cover for low torque
Hudson Bearings BT-1CS two-hole flange-mounted ball transfer units are built for heavy material handling and motion control. They deliver smooth omnidirectional movement in fixtures, conveyors, robotics workstations, or other setups where a low-profile mover is handy. This case of 10 offers a ready-to-install solution for replacing bulky casters or adding transfer points in modular automation lines.
✅ Main ball diameter: 1 in (25.4 mm)✅ Support balls: 90 × 1/8 in (3.18 mm) diameter
✅ Housing: carbon steel, flange-mounted two-hole pattern
✅ Ball cup: hardened and plated for durability
✅ Protective cover included for low torque and longevity
✅ Load rating: 75 lb (34 kg) per unit
✅ Plated carbon steel option for corrosion resistance
✅ Case of 10 units included
✅ Omnidirectional movement with a low-profile design
💡 What is a ball transfer unit used for in material handling and fixtures? Ball transfer units enable smooth omnidirectional movement of heavy objects on conveyors, fixtures, and workstations. - Enables easy directional changes without lifting - Handy for conveyors, fixtures, robotics, and automation lines - Reduces friction and torque for reliable operation - A practical alternative to bulky casters when a low profile is needed This handy setup boosts throughput and reliability in manufacturing, logistics, and automation tasks.
