NBK
NBK Japan BRDB-30 Flange Type Ball Transfer Unit for Downward & Sideward Facing Applications
$327.29 CAD
$441.84 CADyou save $114.55 CAD
SKU: BRDB-30-NBK
UPC: 0
UPC: 0
Item: BRDB-30
Flange Type Ball Transfer Unit
Main Body: Electroless Nickel Plating
Main Ball: Steel
Flange Type Ball Transfer Unit
Main Body: Electroless Nickel Plating
Main Ball: Steel

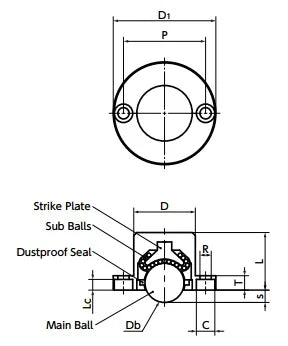

| BRDB-30 Flange Type Ball Transfer Unit for Downward and Sideward Facing Applications |
| Part Number | D | D1 | L | s | T | Db | P | R | C | Lc | Withstand Load (N) |
| BRDB-30 | 30 | 50 | 28 | 6 | 7 | 19.05 | 40 | 5.5 | 9 | 5.2 | 1100 |
