NBK Japan BRDB-38 Flange Type Ball Transfer Unit for Downward & Sideward Facing Applications
$376.12 CAD
$507.76 CADyou save $131.64 CAD
SKU: BRDB-38-NBK
UPC: 0
UPC: 0
Item: BRDB-38
Flange Type Ball Transfer Unit
Main Body: Electroless Nickel Plating
Main Ball: Steel
Flange Type Ball Transfer Unit
Main Body: Electroless Nickel Plating
Main Ball: Steel

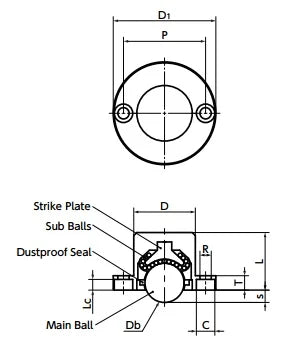

| BRDB-38 Flange Type Ball Transfer Unit for Downward and Sideward Facing Applications |
| Part Number | D | D1 | L | s | T | Db | P | R | C | Lc | Withstand Load (N) |
| BRDB-38 | 38 | 60 | 37 | 8 | 8 | 25.40 | 49 | 6.5 | 10.5 | 6.2 | 1200 |
BRDB-38 Flange Type Ball Transfer Unit
