NBK
BRDH-12 ball rollers can be used in downward and sideward applications such as with casters of push carts for transport, FPD production equipment, semiconductor devices, food production lines, and packaging lines. A dust proof seal prevents the ingress of dirt and dust. The body, main ball, and sub-balls are made from high-strength steel. These rollers have excellent durability.
NBK Japan BRDH-12 Hexagon Head Screw Type Ball Transfer Unit for Downward & Sideward Facing Applications
$291.12 CAD
$393.01 CADyou save $101.89 CAD
SKU: BRDH-12-NBK
UPC: 0
UPC: 0
Item: BRDH-12
Hexagon Head Type Ball Transfer Unit
Main Body: Electroless Nickel Plating
Main Ball: Steel
Hexagon Head Type Ball Transfer Unit
Main Body: Electroless Nickel Plating
Main Ball: Steel

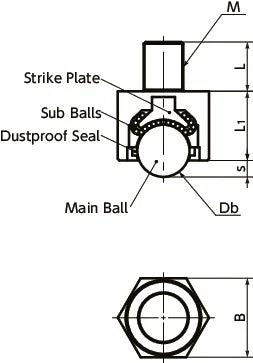

| BRDH-12 Hex Head Type Ball Transfer Unit for Downward and Sideward Facing Applications |
| Part Number | M | L | L1 | s | Db | B | Withstand Load (N) |
| BRDH-12 | 12 | 20 | 21 | 5 | 15.88 | 24 | 900 |
