NBK
BRDRF-50 ball rollers can be used in downward and sideward applications such as with casters of push carts for transport, FPD production equipment, semiconductor devices, food production lines, and packaging lines. A dust proof seal prevents the ingress of dirt and dust. The body, main ball, and sub-balls are made from high-strength steel. These rollers have excellent durability.
NBK Japan BRDRF-50 Flange Type Ball Transfer Unit for Downward & Sideward Facing Applications
Title
$327.29 CAD
$441.84 CADyou save $114.55 CAD
SKU: BRDRF-50-NBK
UPC: 0
UPC: 0
Item: BRDRF-50
Flange Type Ball Transfer Unit
Main Body: Electroless Nickel Plating
Main Ball: Steel
Flange Type Ball Transfer Unit
Main Body: Electroless Nickel Plating
Main Ball: Steel

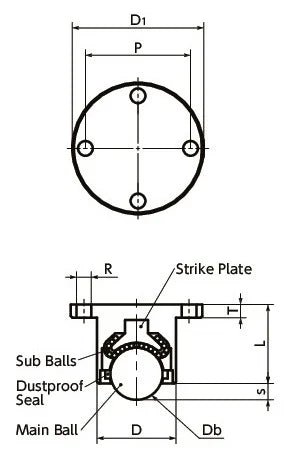

BRDRF-50 Flange Type Ball Transfer Unit for Downward and Sideward Facing Applications |
Part Number | D | D1 | L | s | T | Db | P | R | Withstand Load (N) |
BRDRF-50 | 50 | 30 | 28 | 6 | 5 | 19.05 | 40 | 5.5 | 1100 |
