NBK
NBK Japan BRDSF-60 Flange Type Ball Transfer Unit for Downward & Sideward Facing Applications
$426.75 CAD
$576.11 CADyou save $149.36 CAD
SKU: BRDSF-60-NBK
UPC: 0
UPC: 0
Item: BRDSF-60
Flange Type Ball Transfer Unit
Main Body: Electroless Nickel Plating
Main Ball: Steel
Flange Type Ball Transfer Unit
Main Body: Electroless Nickel Plating
Main Ball: Steel

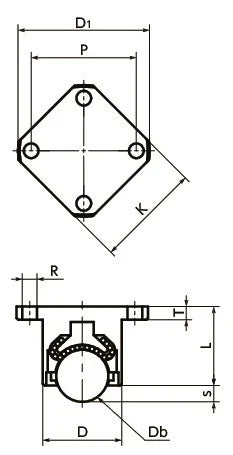

| BRDSF-60 Flange Type Ball Transfer Unit for Downward and Sideward Facing Applications |
| Part Number | D | D1 | L | s | T | Db | P | R | Withstand Load (N) |
| BRDSF-60 | 60 | 38 | 37 | 8 | 6 | 25.40 | 49 | 6.5 | 1200 |
BRDSF-60 ball rollers can be used in downward and sideward applications such as with casters of push carts for transport, FPD production equipment, semiconductor devices, food production lines, and packaging lines. A dust proof seal prevents the ingress of dirt and dust. The body, main ball, and sub-balls are made from high-strength steel. These rollers have excellent durability.
