BRDT-24 ball rollers can be used in downward and sideward applications such as with casters of push carts for transport, FPD production equipment, semiconductor devices, food production lines, and packaging lines. A dust proof seal prevents the ingress of dirt and dust. The body, main ball, and sub-balls are made from high-strength steel. These rollers have excellent durability.
NBK Japan BRDT-24 Tap Hole Type Ball Transfer Unit for Downward & Sideward Facing Applications
$267.62 CAD
$361.28 CADyou save $93.66 CAD
SKU: BRDT-24-NBK
UPC: 0
UPC: 0
Item: BRDT-24
Tap Hole Type Ball Transfer Unit
Main Body: Electroless Nickel Plating
Main Ball: Steel
Tap Hole Type Ball Transfer Unit
Main Body: Electroless Nickel Plating
Main Ball: Steel

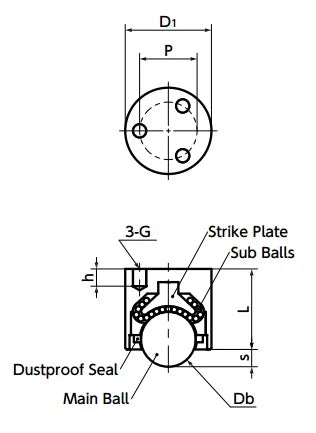

| BRDT-24 Tap Hole Type Ball Transfer Unit for Downward and Sideward Facing Applications |
| Part Number | D1 | L | s | Db | G | h | P | Withstand Load (N) |
| BRDT-24 | 24 | 24 | 5 | 15.88 | M4 | 6 | 16 | 900 |
