NBK
BRDT-30 ball rollers can be used in downward and sideward applications such as with casters of push carts for transport, FPD production equipment, semiconductor devices, food production lines, and packaging lines. A dust proof seal prevents the ingress of dirt and dust. The body, main ball, and sub-balls are made from high-strength steel. These rollers have excellent durability.
NBK Japan BRDT-30 Tap Hole Type Ball Transfer Unit for Downward & Sideward Facing Applications
$301.97 CAD
$407.66 CADyou save $105.69 CAD
SKU: BRDT-30-NBK
UPC: 0
UPC: 0
Item: BRDT-30
Tap Hole Type Ball Transfer Unit
Main Body: Electroless Nickel Plating
Main Ball: Steel
Tap Hole Type Ball Transfer Unit
Main Body: Electroless Nickel Plating
Main Ball: Steel

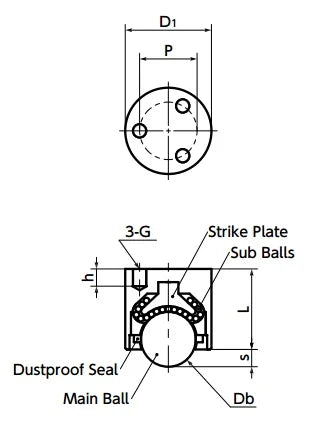

| BRDT-30 Tap Hole Type Ball Transfer Unit for Downward and Sideward Facing Applications |
| Part Number | D1 | L | s | Db | G | h | P | Withstand Load (N) |
| BRDT-30 | 30 | 28 | 6 | 19.05 | M5 | 6 | 20 | 1100 |
