NBK
BRDT-38 ball rollers can be used in downward and sideward applications such as with casters of push carts for transport, FPD production equipment, semiconductor devices, food production lines, and packaging lines. A dust proof seal prevents the ingress of dirt and dust. The body, main ball, and sub-balls are made from high-strength steel. These rollers have excellent durability.
NBK Japan BRDT-38 Tap Hole Type Ball Transfer Unit for Downward & Sideward Facing Applications
$343.56 CAD
$463.81 CADyou save $120.25 CAD
SKU: BRDT-38-NBK
UPC: 0
UPC: 0
Item: BRDT-38
Tap Hole Type Ball Transfer Unit
Main Body: Electroless Nickel Plating
Main Ball: Steel
Tap Hole Type Ball Transfer Unit
Main Body: Electroless Nickel Plating
Main Ball: Steel

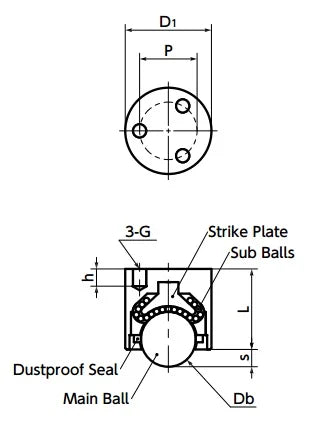

| BRDT-38 Tap Hole Type Ball Transfer Unit for Downward and Sideward Facing Applications |
| Part Number | D1 | L | s | Db | G | h | P | Withstand Load (N) |
| BRDT-38 | 38 | 37 | 8 | 25.40 | M6 | 8 | 26 | 1200 |
