NBK
NBK Japan BRPIN-7-N Insert Type Ball Transfer Unit - Spring Plunger Function for Upward Facing Applications
$92.20 CAD
$124.47 CADyou save $32.27 CAD
SKU: BRPIN-7-N-NBK
UPC: 0
UPC: 0
Item: BRPIN-7-N
Insert Type Ball Transfer Unit
Main Body: Polyacetal/White
Main Ball: Polyacetal/White
Insert Type Ball Transfer Unit
Main Body: Polyacetal/White
Main Ball: Polyacetal/White

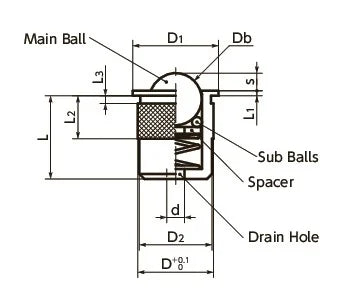

| BRPIN-7-N Insert Type Ball Transfer Unit with Spring Plunger Function for Upward Facing Applications |
| Part Number | D | D1 | D2 | L | s | L1 | L2 | L3 | Db | d | Withstand Load (N) | Quantity per pack |
| BRPIN-7-N | 7mm | 9mm | 7mm | 7.5mm | 1.5mm | 1mm | 7.5mm | 1mm | 4.76mm | 1.5mm | 0.1 / 2 | 1 |
