SS-Hex-M16-Bolt-Ball has a small coefficient of friction and can move work piece with less force. It can be installed or removed by using a open-ended spanner or ring spanner.

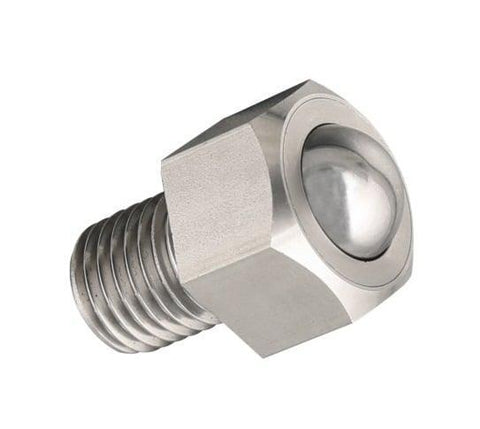

Stainless Steel Hex M16 Bolt Hexagon Head Screw Type Ball Transfer Unit for Upward Facing Applications
$49.34
SKU: SS-Hex-M16-Bolt-Ball
Item: SS-Hex-M16-Bolt-Ball
M16 Hexagon Head Screw Type Ball Transfer Unit
Main Body: Stainless Steel
Main Ball: Stainless Steel
One Screw
M16 Hexagon Head Screw Type Ball Transfer Unit
Main Body: Stainless Steel
Main Ball: Stainless Steel
One Screw
| Stainless Steel M16 Bolt Hex Head Screw Type Ball Transfer Unit for Upward Facing Applications, Single Screw. |

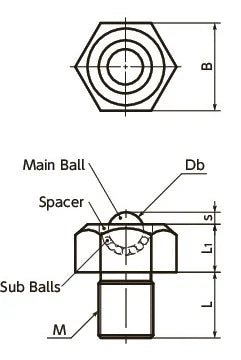

| Part Number | M | L | L1 | s | Db | B | Withstand Load (N) |
| SS-Hex-M16-Bolt-Ball | 16 | 20 | 18 | 5.3 | 15.87 | 24 | 343 |
