SS-Hex-M5-Bolt-Ball has a small coefficient of friction and can move work piece with less force. It can be installed or removed by using a open-ended spanner or ring spanner.

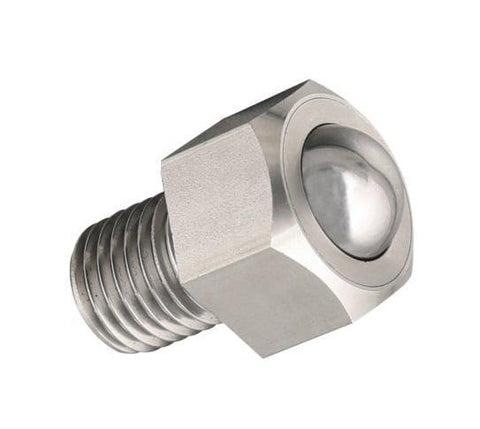

Stainless Steel Hex M5 Bolt Hexagon Head Screw Type Ball Transfer Unit for Upward Facing Applications
$26.78
SKU: SS-Hex-M5-Bolt-Ball
Item: SS-Hex-M5-Bolt-Ball
M5 Hexagon Head Screw Type Ball Transfer Unit
Main Body: Stainless Steel
Main Ball: Stainless Steel
One Screw
M5 Hexagon Head Screw Type Ball Transfer Unit
Main Body: Stainless Steel
Main Ball: Stainless Steel
One Screw
| Stainless Steel M5 Bolt Hex Head Screw Type Ball Transfer Unit for Upward Facing Applications, Single Screw. |

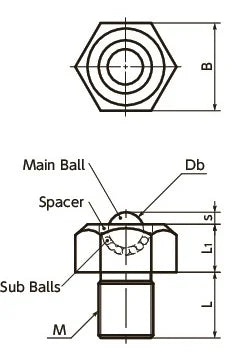

| Part Number | M | L | L1 | S | Db | B | Withstand Load (N) |
| SS-Hex-M5-Bolt-Ball | 5 | 6 | 5 | 1.1 | 4 | 8 | 12 |
