1610 Linear Motion CNC Ball Screw with Anti Backlash Nut, SFU1610 300mm / 11.81 inch 16mm Ballscrew with Standard End Machine for BK12 BF12 for CNC axis motion, anti-backlash setup, and smoother linear travel under load, 1-pack replacement

1610 Linear Motion Cnc 1-pack built for smooth installs and solid results
✔️ 1610 Linear Motion CNC Ball Screw with Anti Backlash Nut, SFU1610 300mm / 11.81 inch 16mm Ballscrew

This 1 pack is meant for clean replacement or upgrade work where fit and smooth operation matter.

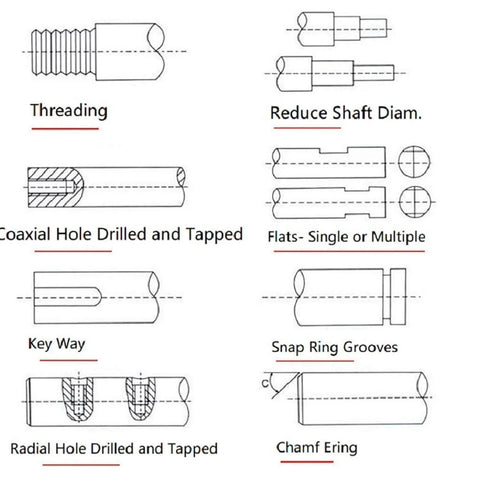

✅ The package includes: C7 Grade SFU1610 ball screw 300mm / 11.81 inch + ballscrew nut, the end machining is standard as the pic 2 in default. We can provide custom end machining, if need, please message us
✅ The RM1610 ballscrews diameter: 16mm
✅ Pitch: 5mm, Lead: 10mm

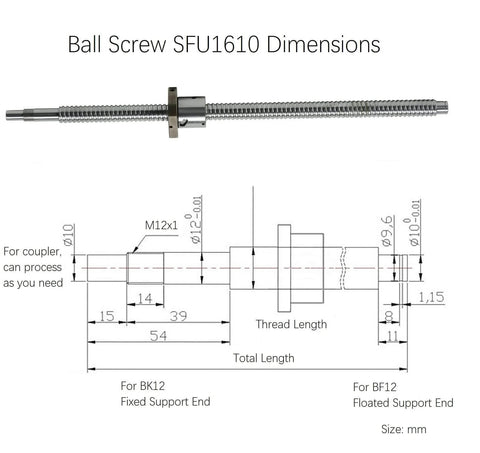

✅ total length about 300mm, thread length about 235mm, travel length about 183mm. We can customize the end machining as your requirements

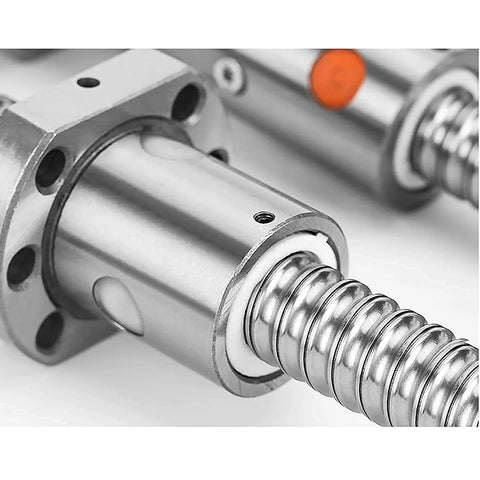

✅ The ball screw nut is with good anti-backlash performance, make it with higher accuracy and longer service time

💡 How do you size a ballscrew kit to avoid backlash in CNC builds?
Quick answer: match pitch, travel length, and support style to your axis load and speed.
* Pitch controls feed rate and torque demand
* Proper end supports keep alignment tight under load
* Good lubrication cuts heat and wear over time

Built to keep motion smooth and accuracy steady during long production runs.
