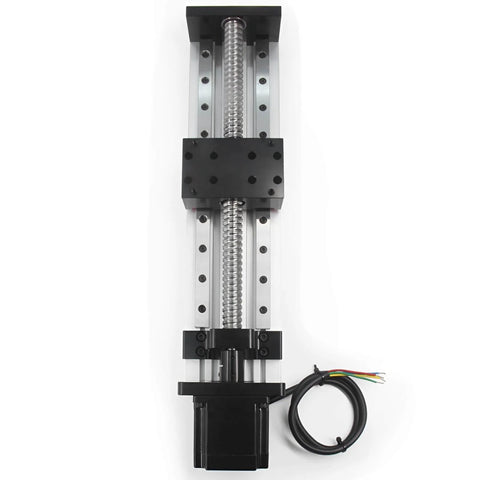

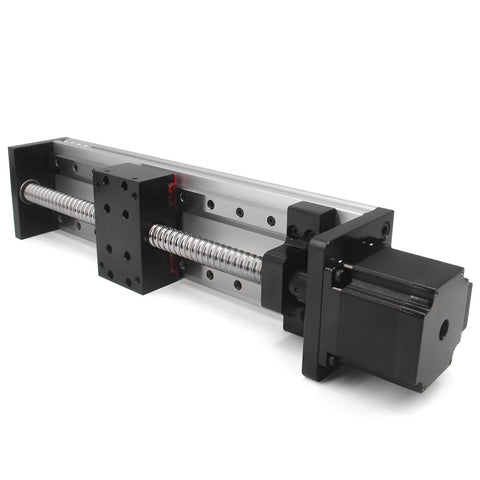

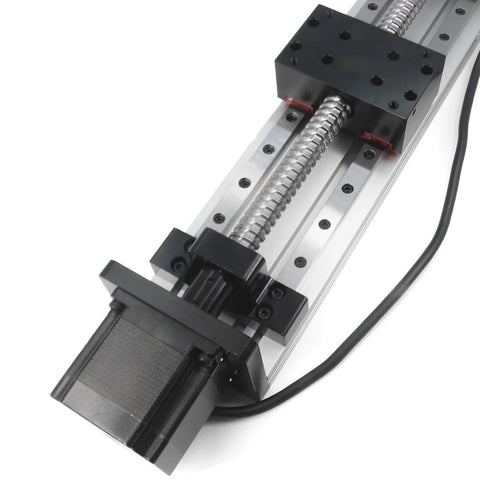

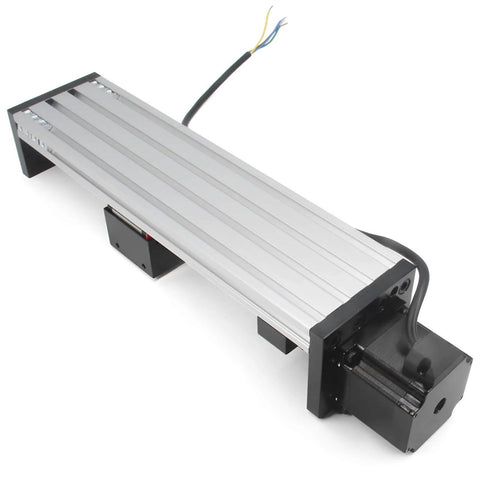

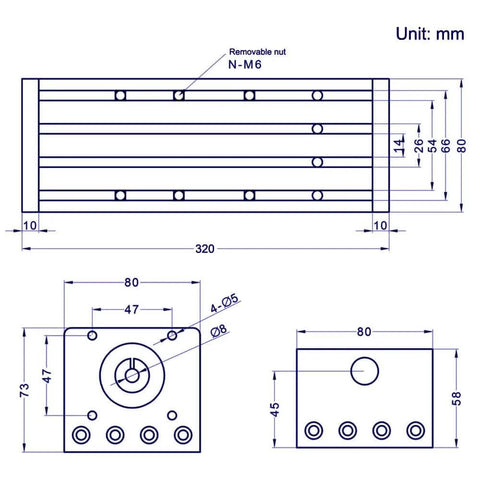

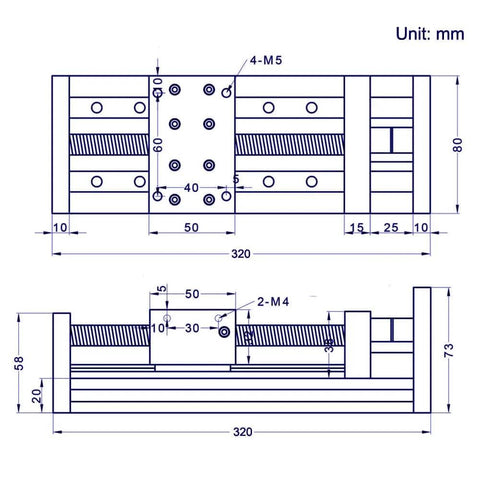

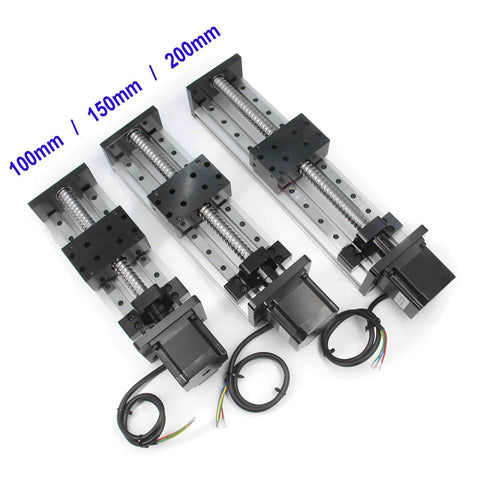

200mm Effective Stroke Length Double Linear Rail Guide with Square Linear Rails Ballscrew SFU1605 with Nema 23 Stepper Motor for CNC Router Parts X Y Z Linear Stage Actuator (Size:200mm)

200mm Effective Stroke Length Double Linear Rail Guide with SFU1605 Ballscrew + NEMA23 Stepper Motor Kit for CNC Router X Y Z Linear Stage Actuator (Pack Size: 1 Kit)
✔️ Compact, ready-to-install kit designed for precise, repeatable motion on CNC routers and precision measurement setups

This 200 mm effective travel double linear rail guide combines a high-precision SFU1605 ballscrew with a NEMA23 stepper motor to create a reliable, compact linear stage for accurate positioning along X, Y, and Z axes. It’s a handy solution for CNC router projects, inspection rigs, optical lab work, and any application that demands tight repeatability and smooth movement.

✅ Effective Travel: 200 mm
✅ Total Length: 376 mm
✅ Ballscrew Type: SFU1605 (Dia 16 mm, Pitch 5 mm)
✅ Lead: 5 mm per turn
✅ 4x M5 threaded holes on the moving block to fix the workpiece
✅ Weight: about 2711 g
✅ Load Capacity: Horizontal 40 kg; Vertical 15 kg
✅ Speed: 0-50 mm/s
✅ Drive and controller required (not included)

Effective Travel: 200 mm
Total Length: 376 mm
Ballscrew: SFU1605; Dia 16 mm, Pitch 5 mm
Lead: 5 mm per turn
Moving Block Holes: 4x M5
Weight: ~2711 g
Horizontal Load: 40 kg
Vertical Load: 15 kg
Speed: 0-50 mm/s
Motor: NEMA23, 24 V, 3 A, Flange 57 mm, Length 56 mm, Holding Torque 1.2 N cm
Rotor Inertia: 440 g cm
Wiring: Red A+, Green A-, Yellow B+, Blue B-

Question: What are the key mounting considerations and performance outcomes when integrating a 200 mm stroke double linear rail guide with SFU1605 ballscrew and a NEMA23 motor into a compact CNC router, in terms of precision (repeatability), speed, load handling, and thermal behavior under typical duty cycles?

Answer: Quick overview: proper alignment and motor drive pairing are essential for reliable, repeatable motion in this compact setup.

• Ensure precise alignment of the rail and screws with the moving block to achieve ±0.03 mm repeatability and minimize binding.
• Pair the SFU1605 screw with a compatible CNC drive/controller and a suitable power supply (24 V, around 3 A per motor) to reach the specified speed without stalling.
• Account for thermal rise under load; the NEMA23 motor can heat up during extended runs, so provide adequate cooling and consider duty-cycle limits to maintain performance.
• Use proper lubrication and optional anti-backlash elements if ultra-tight positioning is required, and manage cabling to prevent interference at speeds up to 50 mm/s.
