300mm/11.81" Stroke CNC Linear Stage Motion Actuator X/Y/Z Axis Cross Sliding Table Double Linear Slide Rail Guide 1605 Ballscrew with Limit Switch+Motor Mount Bracket for CNC Router

300mm Stroke CNC Linear Stage X/Y/Z Cross Sliding Table SFU1605 Ballscrew, 2 Limit Switches, 1 Motor Mount Bracket, 1 Unit Pack for CNC Router
✔️ Handy, heavy-duty multi-axis motion platform for CNC routers and automation

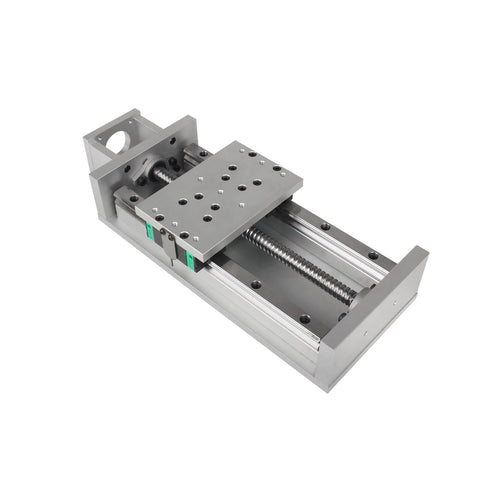

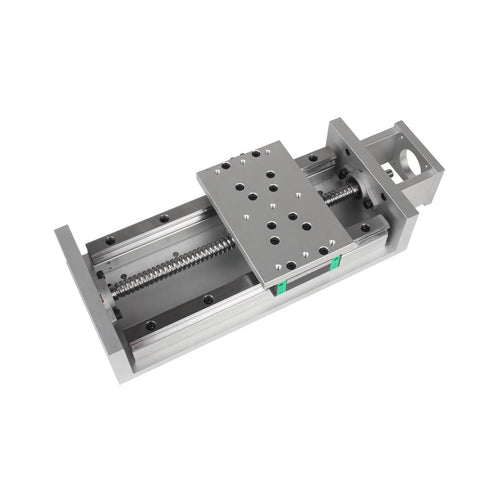

This 300mm travel CNC linear stage is a compact motion system designed for precise X, Y, and Z axis travel in CNC routers, milling machines, laser cutters, and automated workcells. Pack: 1 unit.

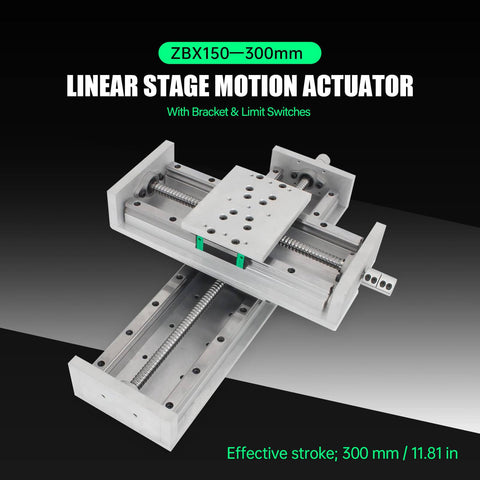

✅ Travel: 300 mm (11.81 in)
✅ Horizontal load: 120 kg
✅ Vertical carrying: 50 kg

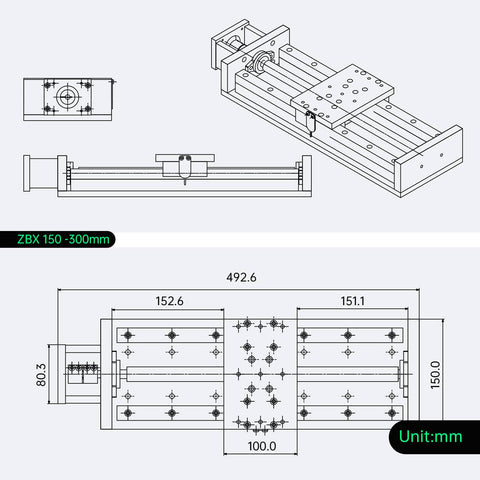

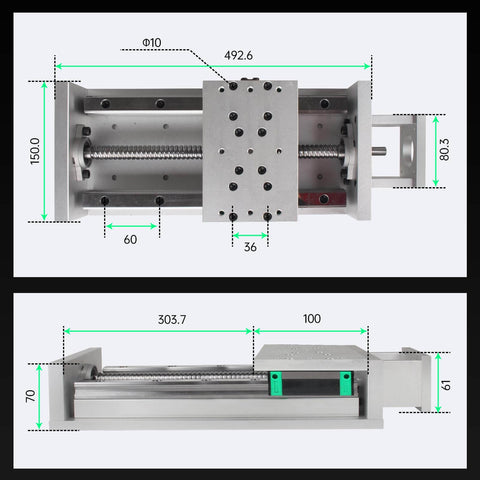

✅ Width: 150 mm (5.91 in)

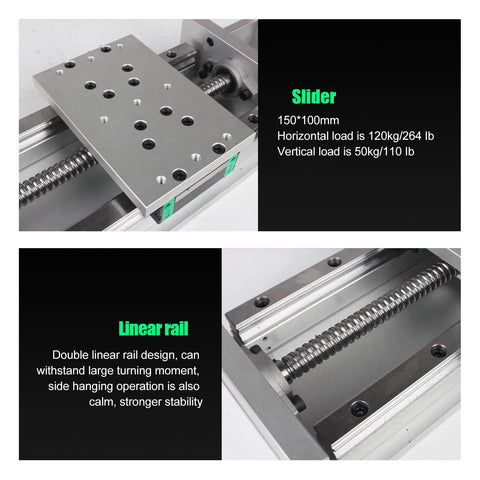

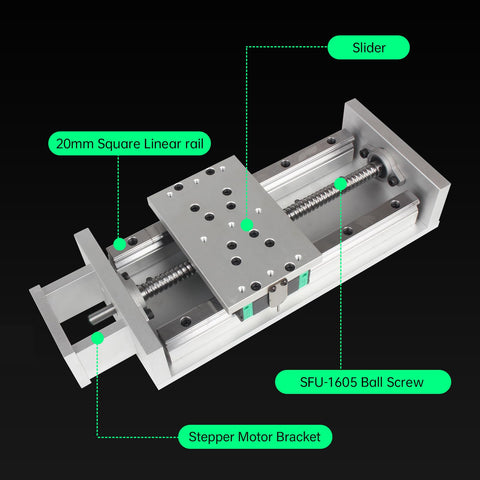

✅ Ball screw: SFU1605, 16 mm diameter, lead accuracy up to 0.03 mm
✅ Rail: 20 mm square linear rail, high-speed, silent
✅ Material: aluminum alloy, rust-resistant, wear-resistant
✅ Includes: 2 limit switches, 1 motor mount bracket (motor not included)
✅ Note: latest batch of heavy-duty motor mounts may vary slightly from image

💡 How does the 300 mm travel CNC linear stage with SFU1605 ballscrew ensure alignment and repeatability across X, Y, and Z axes in a compact CNC router, and what mounting and calibration steps are recommended for a beginner setup?

In short, the stage combines rigid construction with precision guidance to deliver reliable, repeatable motion across multiple axes.

• Ensure X, Y, and Z axes are parallel and orthogonal by mounting on a flat, true surface and checking with a dial indicator during setup (travel is 300 mm or 11.81 in).
• Tighten motor mount screws to the specified torque and wire limit switches to the controller’s endstop inputs; verify end-to-end travel by homing and jogging within safe limits.
• Lubricate the SFU1605 ball screw per the manufacturer’s guidance and perform a backlash check; schedule regular maintenance to preserve accuracy over time.
