Motor Mounting Bracket with BK12 Fixed Bearing End Support for Nema 23 Stepper Motor and 16mm Ball Screws SFU1604 SFU1605 SFU1610 CNC Kit Parts

Motor Mounting Bracket with BK12 Bearing End Support for CNC
✔️ NEMA 23 Motor Mount and BK12 Support for 16mm Ball Screws

This integrated CNC mounting part combines a BK12 fixed bearing end support with a motor mounting bracket for NEMA 23 stepper motors. It’s made to keep the motor, coupling, bearing seat, and ball screw perfectly aligned, which helps CNC motion systems run smoother, quieter, and last longer.

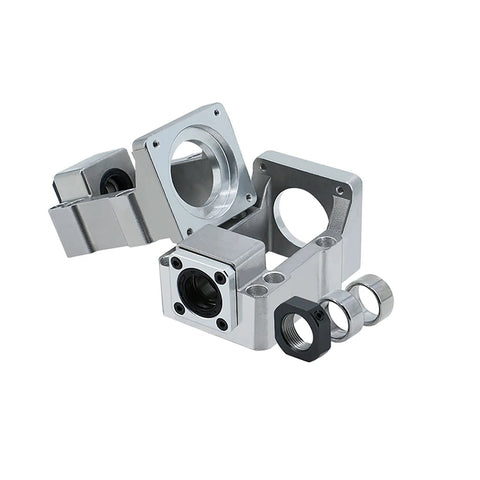

Pack size: 1 integrated motor mounting bracket with BK12 bearing end support block

✅ Designed for 16mm ball screws including SFU1604, SFU1605, and SFU1610
✅ Compatible with NEMA 23 stepper motors and common servo motors
✅ Integrated design keeps motor shaft, coupling, bearing hole, and ball screw axis perfectly in line
✅ Helps improve motion accuracy while cutting down vibration and noise
✅ Made from cast aluminum with high hardness and shock resistance
✅ Precision machined for tight tolerances and stable mounting
✅ Rust-resistant finish for long-term CNC and shop use

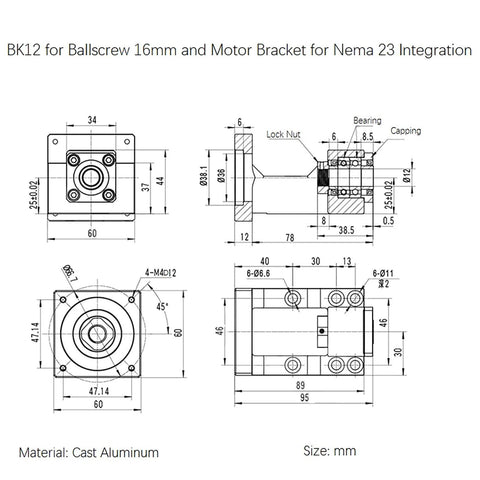

✅ CAD and 3D files available upon request for easy system design
✅ Commonly used in CNC routers, engraving machines, milling setups, and 3D printer motion systems

💡 Why is precise motor and ball screw alignment critical in CNC motion systems?
Good alignment is key to smooth power transfer and long service life in linear motion assemblies.

• Keeps axial loads balanced to protect bearings and ball screw threads

• Reduces vibration, chatter, and unwanted system noise

• Improves positioning accuracy in CNC and automation builds

• Helps motors and couplings run cooler and more efficiently

This mounting bracket and BK12 support combo is a handy upgrade when you want cleaner alignment, smoother motion, and more dependable performance in CNC and automation projects.
