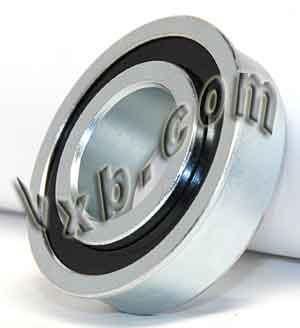

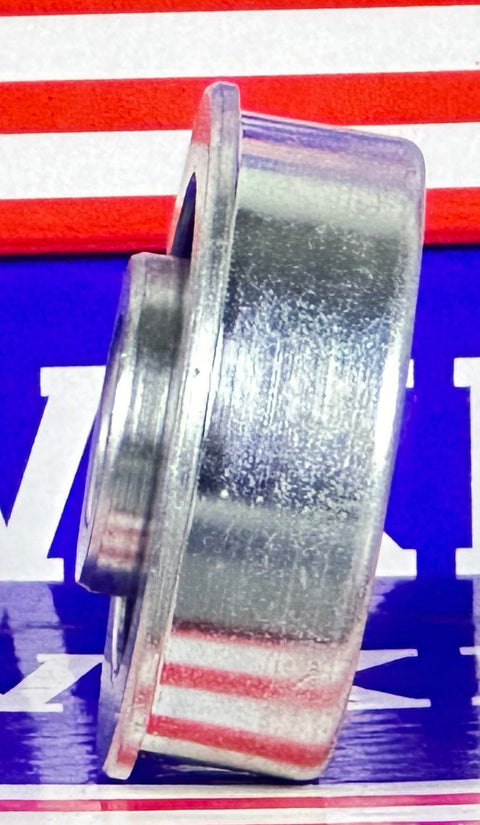

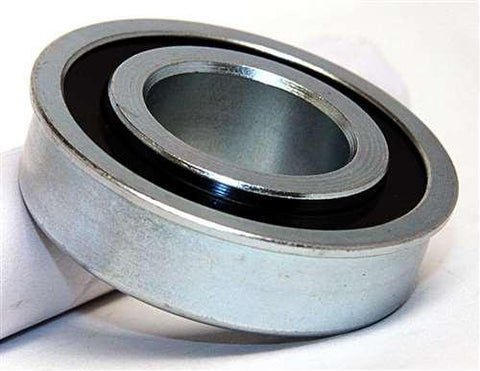

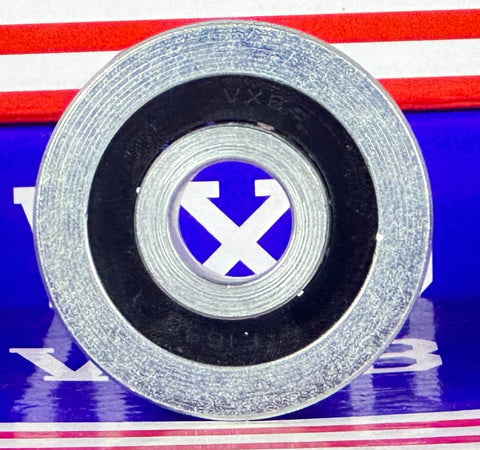

F1650 Flanged Bearing - Full Complement - 1/2" x 1-9/16" x 21/32" inch

F1650 Flanged Ball Bearing - Full Complement
✔️ 1/2" ID x 1 9/16" OD x 21/32" Width - No Cage - Heavy Load Capacity

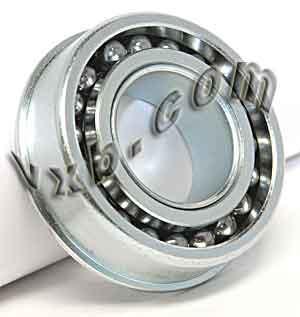

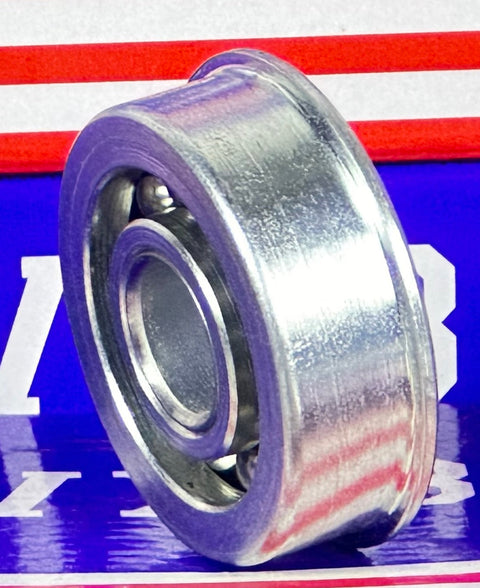

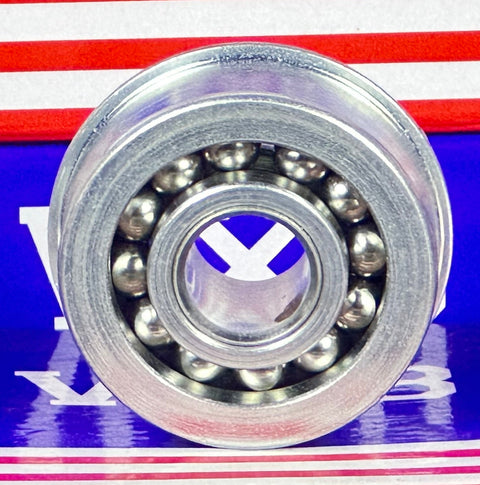

This F1650 flanged ball bearing features a full complement design, meaning it contains no cage, allowing more balls for increased load handling. It’s commonly used in high-load, low-speed mechanical systems that require maximum ball contact.

✅ Pack size: 1 bearing
✅ Type: Full complement (no cage)
✅ Bore diameter: 1/2"
✅ Outer diameter: 1 9/16" (1.563")
✅ Width: 21/32" (0.656")
✅ Outer ring width: 17/32"
✅ Flange diameter (G): 1 11/16"
✅ Ball size: 1/4"
✅ Use: Ideal for heavy-load, low-speed assemblies

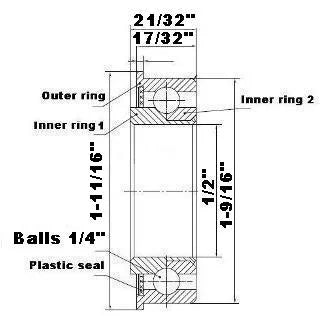

Dimensions Table (Inches):

💡 What are the advantages of full complement flanged bearings?
They’re built for max load handling in compact designs.

• More balls = higher load capacity

• No cage means fewer internal gaps

• Flange allows easy axial positioning

• Great for applications with limited speed but high pressure

Tough, flange-mounted, and built for strength - add the F1650 to your system and power through the pressure.
