Flanged Bearing 9/16" x 1-1/4" x 1/2"inch - Full Complement - F1840

F1840 Flanged Ball Bearing - Full Complement
✔️ 9/16" Bore - Heavy Duty with No Cage for Max Load

The F1840 is a heavy-duty flanged ball bearing with a full complement design, meaning it has no cage and more balls for higher load capacity. Built for rugged setups and tight axial support, it’s ideal for pulley systems, carts, and heavy mechanical guides where flange mounting is key.

✅ Bore diameter: 9/16" inch (0.563")
✅ Outer diameter: 1-1/4" inch (1.25")
✅ Inner ring width: 1/2" inch
✅ Outer ring width: 7/16" inch
✅ Flange diameter (G): 1-3/8" inch
✅ Ball size: 5/32" inch
✅ Full complement design - no cage for max load capacity
✅ Quantity: 1 flanged bearing

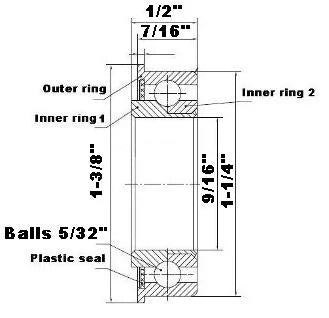

Dimensions Table (in inches):

💡 Why choose a full complement flanged bearing without a cage?
These bearings are built for max load and tight support:

• More balls inside = better load handling

• No cage means more contact and pressure resistance

• Flange makes installation fast and stable

• Perfect for carts, track rollers, or guided shafts

If you need a tough bearing that can carry the weight and stay locked in place, this one’s it. Load it up and roll with confidence.
