F2060 Flanged Bearing - Full Complement - 5/8" x 1-7/8"x5/8"inch
UPC: 00193019049518
Type: Unground Flanged Ball Bearing
Size: 5/8" x 1-7/8" x 5/8" Inch
Size: 0.625" x 1.875" x 0.625" Inch
Balls Size: 1/4
F2060 Flanged Ball Bearing

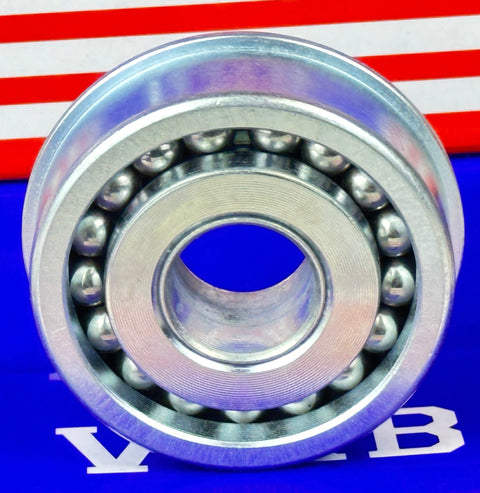

✔️ Full Complement - No Cage - 5/8" x 1-7/8" x 5/8"
The F2060 is a heavy-duty flanged ball bearing with a 5/8" bore and a full complement of 1/4" balls - meaning no cage and more load support. It’s made for tough jobs where strength and alignment matter, like pulleys, rollers, and custom builds.
âś… Full complement (no cage) for maximum ball count
âś… Flanged outer ring for easy mounting and alignment
âś… Size: 5/8" ID x 1-7/8" OD x 5/8" width
âś… 1/4" ball size for solid load-bearing
âś… Includes 1 flanged bearing

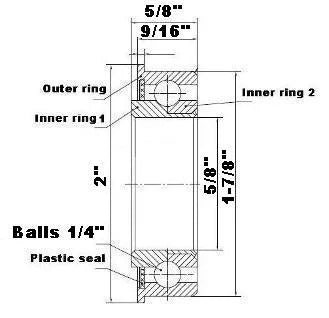

Dimensions Table (Inches):
| Bore (ID) | Outer Diameter (OD) | Inner Width | Outer Width | Flange OD (G) |
|---|---|---|---|---|
| 5/8" | 1-7/8" | 5/8" | 9/16" | 2" |
💡What’s the benefit of using full complement flanged bearings?
These bearings pack more balls in, offering solid support in demanding jobs:
-
Higher load capacity due to more rolling elements
-
No cage = more contact = more strength
-
Flange helps with axial location in housings
-
Ideal for low-speed, high-load environments
If you need tough and tight, this bearing’s built for it. Add it to your cart and let it take the load off your project.
