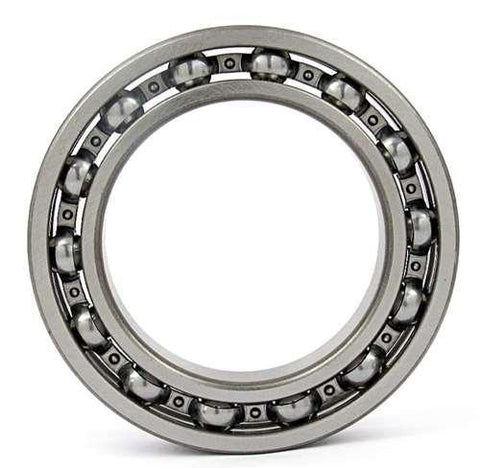

6814 Bearing - Deep Groove Ball Bearing 6814

6814 Bearing - Thin Section Ball Bearing

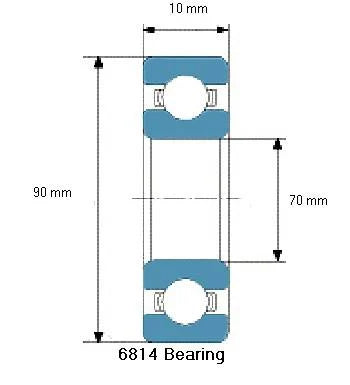

✔️ 70mm x 90mm x 10mm Deep Groove - Open Type

The 6814 bearing is a slim, single-row deep groove ball bearing designed for compact applications that still demand strength. With a 70mm bore and only 10mm width, it fits tight spaces while delivering smooth, high-speed rotation - great for robotics, spindles, and electric motors.

✅ Pack of 1 open deep groove bearing
✅ Inner diameter: 70mm
✅ Outer diameter: 90mm
✅ Width: 10mm
✅ Dynamic load rating: 12.4 kN
✅ Static load rating: 13.2 kN
✅ Clearance: 1 to 18 μm
✅ Grease RPM limit: 9000
✅ Precision inner ring tolerance: 0 to -20 μm
✅ Outer ring tolerance: 0 to -18 μm
✅ Lubrication: Oil or grease

💡 What are thin section bearings used for in compact machinery?
Thin section bearings offer strength and speed where space is limited.

• Ideal for applications needing low weight and reduced friction

• Common in robotics, electric motors, and precision gearboxes

• Maintains high-speed performance with low-profile width

• Saves space without sacrificing reliability

Cross-reference equivalents:
- 61814
- Koyo 6814
- Nachi 6814
- NTN 6814
- MRC 1814S
- FAG 6814
- NSK 6814

Running out of room but still need performance? This 6814 Bearing is slim and will get you covered - order now and keep your design light and efficient!
