6816 Bearing Deep Groove 6816

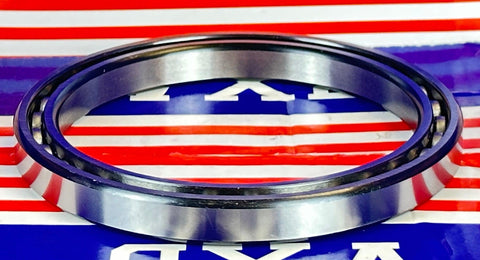

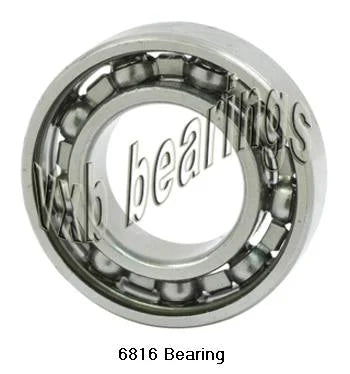

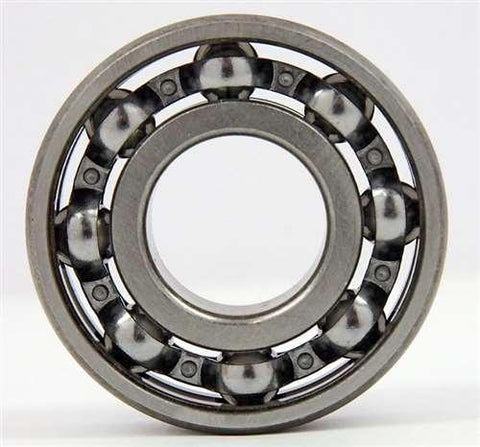

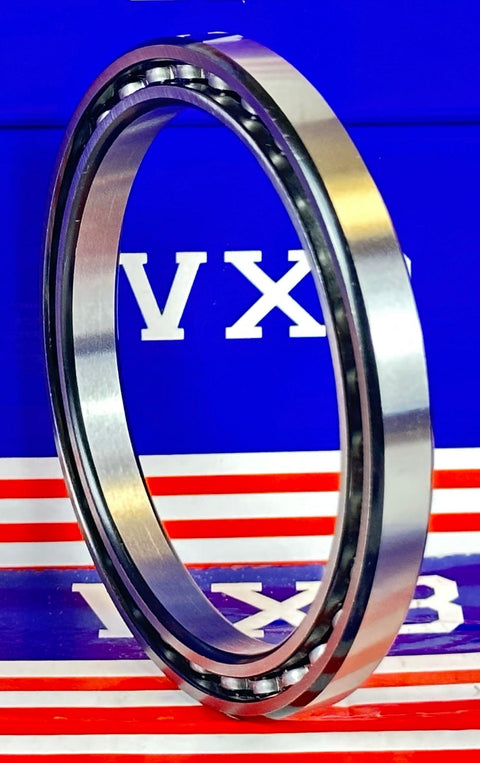

6816 Open Deep Groove Ball Bearing

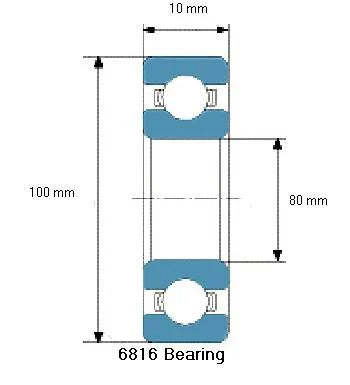

✔️ 80mm ID - 100mm OD - 10mm Wide

The 6816 is a slim, single-row deep groove ball bearing engineered for high-speed, low-friction performance. With oil lubrication and precision tolerances, this open-style bearing is ideal for electric motors, lightweight machinery, and high-precision applications where compactness and efficiency matter.

✅ Type: Single-row deep groove ball bearing (open)
✅ Inside diameter: 80mm
✅ Outside diameter: 100mm
✅ Width: 10mm
✅ Clearance: 1-18 μm
✅ Inner ring tolerance: 0 to -20 μm
✅ Outer ring tolerance: 0 to -18 μm
✅ Dynamic load rating (Cr): 13 kN
✅ Static load rating (Cor): 15 kN
✅ Max speed (grease): 8,000 RPM
✅ Lubrication: Oil lube (open bearing)
✅ Quantity: 1 bearing
✅ Brand: VXB
✅ SKU: 6816Bearing
✅ Equivalents: 61816, Koyo 6816, Nachi 6816, NTN 6816, MRC 1816S, FAG 6816, NSK 6816

💡 Why choose an open deep groove bearing for precision equipment?

Open bearings offer lower friction and better cooling at high RPMs.
They’re ideal for environments with external lubrication systems.
Perfect for motors, instruments, and gear-driven assemblies where space and speed are key.

Need lightweight speed and quiet precision? This 6816 bearing is your go-to - drop it in and let your system breathe easy!
