7214B Bearing Angular contact 7214B

7214B Angular Contact Ball Bearing

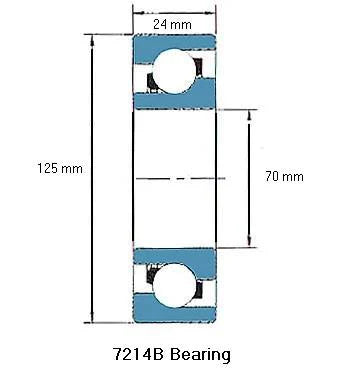

✔️ 70mm ID - 125mm OD - 24mm Width - High Load Precision

The 7214B is a single-row angular contact ball bearing built for high-speed and high-load applications. Its design allows for axial load handling in one direction, commonly used in pumps, compressors, gearboxes, and machine tool spindles. Manufactured with tight tolerances and a 40° contact angle, it offers stable, high-precision performance.

✅ Pack size: 1 bearing
✅ Type: Single-row angular contact ball bearing
✅ Size: 70mm x 125mm x 24mm
✅ Material: High-strength chrome steel
✅ Inner diameter: 70mm
✅ Outer diameter: 125mm
✅ Width: 24mm
✅ Clearance: 1 \~ 18µm
✅ Inner ring tolerance: 0 \~ -20µm
✅ Outer ring tolerance: 0 \~ -25µm
✅ Dynamic load rating: 71.5 kN
✅ Static load rating: 60 kN
✅ Max speed (grease): 6,000 RPM
✅ Brand: VXB

✅ Equivalent cross-references:
Fafnir 7214, FAG 7214B-TVP, NSK 7214A/B/C, MRC 7214P, NTN 7214B, Barden 214H/2214H, and many others

💡 Why are angular contact bearings used in high-speed, precision systems?
Their asymmetric raceway design supports combined loads and prevents axial displacement under rotation - ideal for precision-driven components like spindle assemblies or gearboxes operating under dynamic forces.

When precision meets performance, the 7214B keeps your systems turning smoothly - order now and keep your equipment running with confidence.
