250mm CNC Linear Guide Module with Ball Screw, Nema 23 Stepper Motor, 250mm Stroke, Compact No-Rail Design, ±0.02mm Repeat Accuracy, 20kg Horizontal Load, Quiet High-Speed Motorized Linear Stage

250mm Motorized Linear Guide Module with Ball Screw for CNC Use
✔️ Nema 23 Linear Stage with 250mm Stroke Travel

This motorized linear guide module is built for CNC machines, automation rigs, and precision motion systems that need accurate travel in a slim footprint. It combines a ball screw drive with an integrated Nema 23 stepper motor, making it a handy choice for clean motion control in tight setups. Pack size is one complete linear module with motor included.

✅ Pack size: 1 complete linear module with Nema 23 stepper motor
✅ Model: 250mm linear guide linear module
✅ Stroke travel: 250mm effective working length
✅ Drive type: G1610 ball screw for smooth, efficient motion

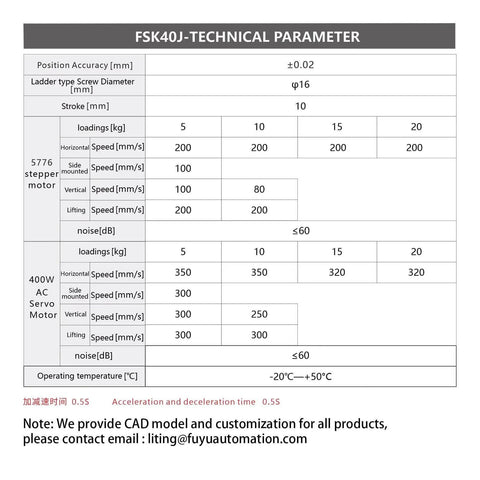

✅ Repeated positioning accuracy: ±0.02mm
✅ Compact no-rail structure with overall height around 47mm

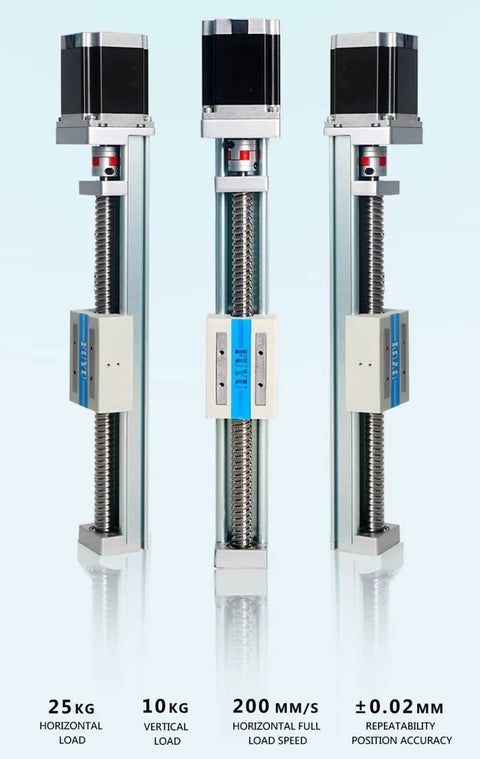

✅ Horizontal load capacity up to 20kg
✅ Supports upside-down or flipped installation up to 10kg load
✅ Horizontal full-load speed up to 200mm per second
✅ Motor type: Nema 23 stepper motor 5776
✅ Maximum motor speed up to 1200 rpm

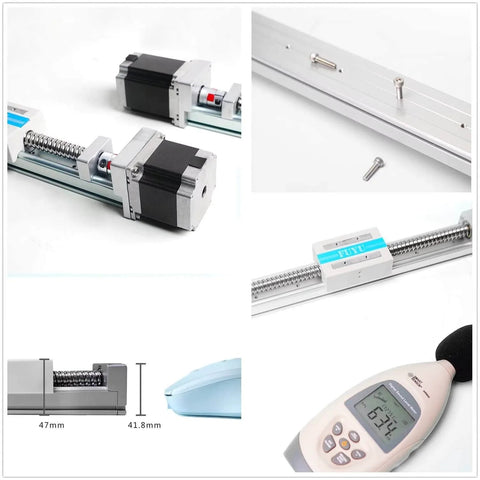

✅ Quiet operation with no-load noise under 65 dB
✅ Anti-corrosion and rust-resistant materials for long-term use
✅ Sliding seat and base upgraded with M5 mounting holes for stronger locking

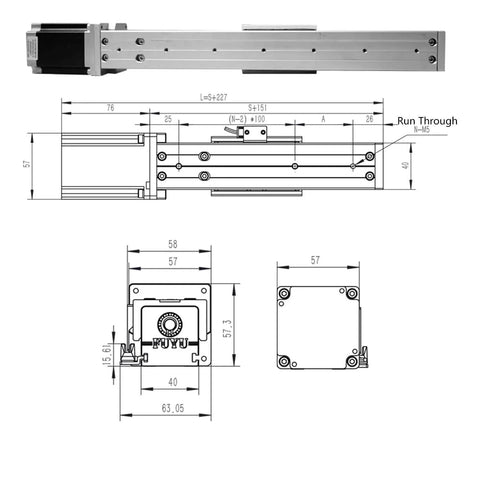

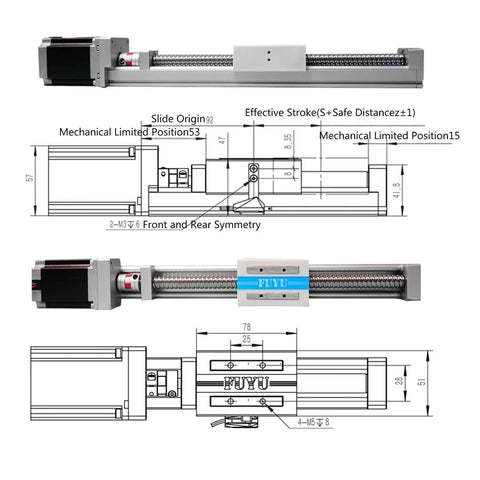

Dimensions
Stroke Length 250mm
Module Height approx. 47mm

💡 Why do CNC machines use motorized ball screw linear modules for precise positioning?
Ball screw linear modules are designed for controlled, repeatable motion where accuracy really matters.

• Ball screw driven linear stages help minimize backlash and improve repeat positioning accuracy

• Compact linear guide modules save space while keeping stiffness and load support solid

• Motorized linear stages deliver smooth, predictable travel for CNC, automation, and robotic systems

This linear module is a smart pick when you want tight accuracy, quiet performance, and a low-profile design that fits cleanly into space-limited CNC builds.
