350mm CNC Linear Guide Module with Ball Screw, Nema 23 Stepper Motor, 350mm Stroke, Compact No-Rail Design, ±0.02mm Repeat Accuracy, 20kg Horizontal Load, Quiet High-Speed Motorized Linear Stage

350mm Motorized Linear Guide Module with Ball Screw for CNC Use
✔️ Nema 23 Linear Stage with 350mm Stroke Travel

This is a motorized linear guide module designed for CNC machines, automation projects, and precision linear motion setups. It combines a compact linear stage body with a ball screw drive and a Nema 23 stepper motor, making it a handy solution for accurate positioning in tight spaces. Pack size is one complete linear module with motor included.

✅ Pack size: 1 complete linear module with Nema 23 stepper motor
✅ Model: 350mm linear guide module
✅ Stroke travel: 350mm effective working length
✅ Drive system: G1610 ball screw for smooth and efficient motion
✅ Repeated positioning accuracy: ±0.02mm

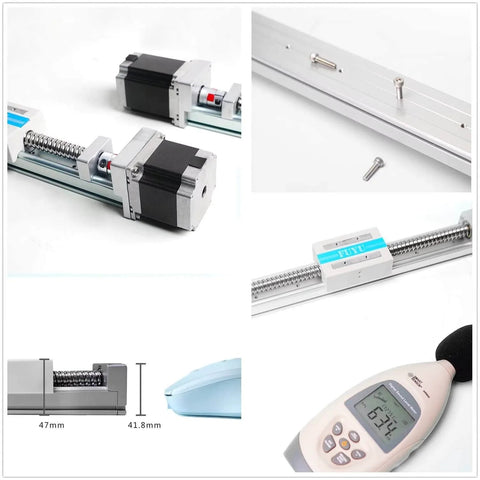

✅ Compact no-rail design with total height around 47mm
✅ Horizontal load capacity up to 20kg
✅ Flip or upside-down mounting supported up to 10kg load
✅ Maximum horizontal full-load speed: 200mm per second
✅ Motor type: Nema 23 stepper motor, model 5776
✅ Maximum motor speed: up to 1200 rpm
✅ Low noise operation under 65 dB at no load
✅ Anti-corrosion and rust-resistant materials for longer service life
✅ Sliding seat and base upgraded with M5 threaded holes for easier mounting
✅ Optional upgrade path to higher-speed servo motor available if needed

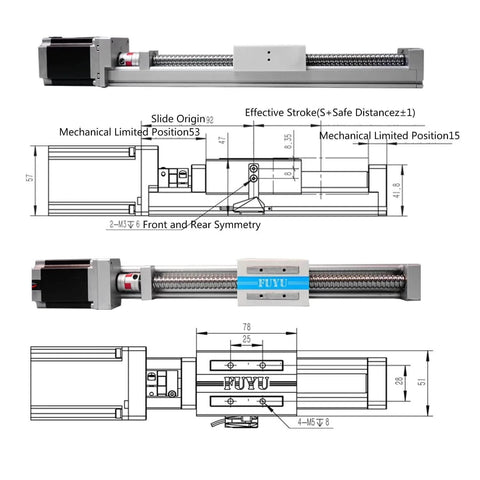

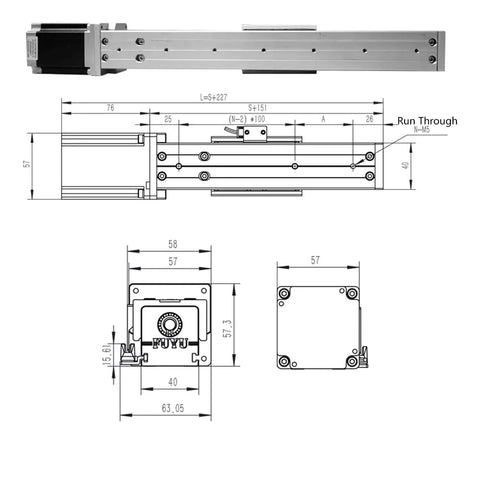

Dimensions
Stroke Length 350mm
Module Height approx. 47mm

💡 Why are ball screw linear modules preferred for CNC linear stages and automation systems?
Ball screw driven linear modules are chosen when accuracy, repeatability, and smooth motion matter most.

• Ball screw linear stages reduce backlash and improve positioning precision in CNC applications

• Integrated linear guide modules save space while maintaining rigidity and load stability

• Motorized linear stages offer consistent motion control for automation, robotics, and custom machinery

This linear module is a solid pick when you need clean motion, reliable accuracy, and a compact form factor that fits where bulky rail systems just won’t work.
