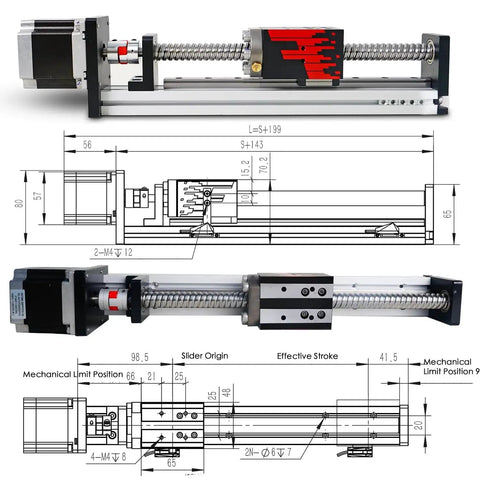

FSL40 Linear Guide System With G1610 Ball Screw For CNC Table Motion Stage 700mm Stroke Work Size Fully Aluminum Structure High Precision Linear Motion Platform With Backplate Mounting Versions V1 And V2 Nema 23 Stepper Motor

Single-unit FSL40 Linear Guide for CNC motion
✔️ Sealed ball bearing rail, 700mm stroke, Nema 23 motor

This precision linear slide unit is built for table-based motion in CNC routers, laser cutters, and automated assembly lines. It uses a fully aluminum frame with a robust G1610 ballscrew for strong, rust‑resistant performance and smooth travel. The system ships with mixed V1/V2 backplate mounting options and offers stroke choices from 50mm to 1000mm, with 700mm being a popular mid‑range length. Expect accuracy up to ±0.02mm, horizontal load up to 25 kg, and vertical load up to 20 kg. No‑load speeds reach up to 255 mm/s, with up to 180 mm/s under typical loading, and vertical speeds up to 80 mm/s under load. For higher speeds, a 400W servo option is available. Common uses include precise positioning, dispensing, spraying, visual inspection, cutting, welding, palletizing, and automation tasks.

✅ 700mm stroke length; multiple lengths 50-1000mm

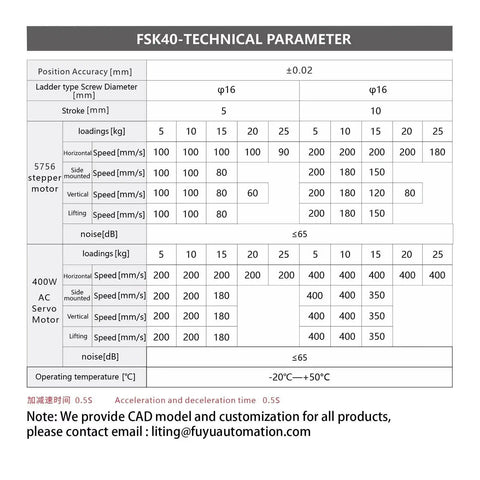

✅ Max speed 255 mm/s no load; 180 mm/s loaded
✅ Horizontal load up to 25 kg; vertical load up to 20 kg
✅ Fully aluminum frame with G1610 ballscrew for rigidity
✅ Nema 23 motor included (5756) with 1200 rpm max; 400W servo optional

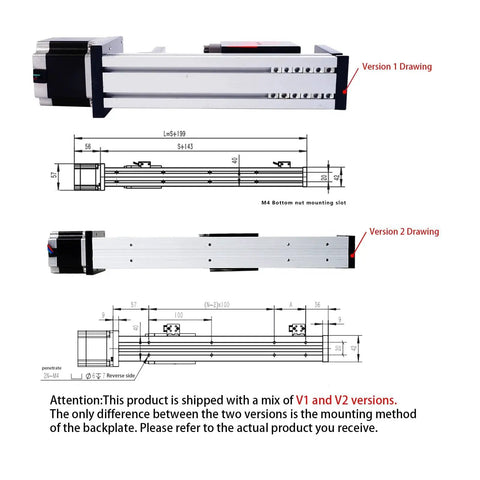

✅ Mixed V1/V2 backplate mounting options for compatibility

💡 What is a linear guide rail used for? This handy component enables precise, straight-line motion in automation and machine tooling.

• handy for CNC tables, robotics arms, and packaging lines
• improves repeatability with low-friction, smooth travel
• lets you move heavy loads accurately along a fixed path
• easy to upgrade existing setups with modular stroke options
