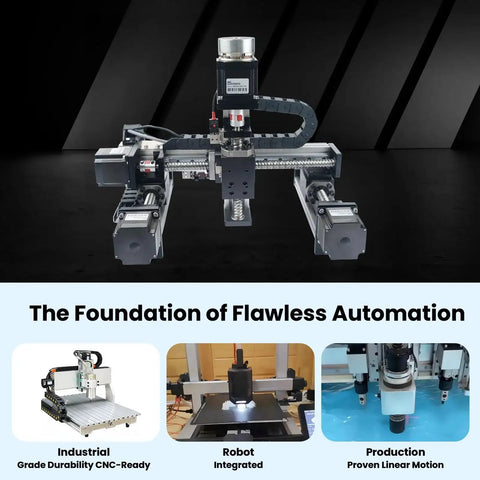

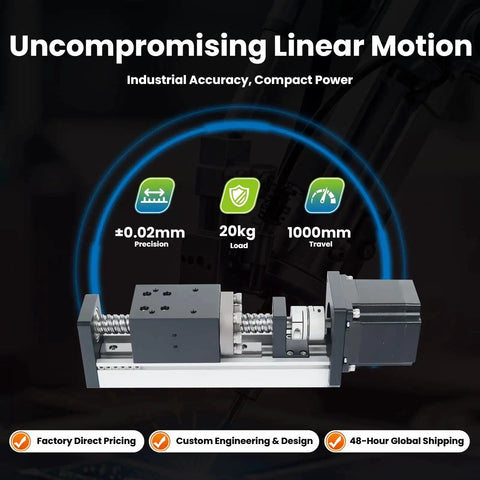

HMS40 Series Linear Guide Rail Module With NEMA23 56mm Motor For 3D Printers And CNC Machines Long Stroke Up To 1200mm 10mm Lead High Load Capacity Smooth MGN12 Rails Heavy Duty Precision Motion By KHMOS

HMS40 single-pack long-stroke linear guide rail module with motor
✔️ 1200 mm stroke, 10 mm lead, MGN12 rails, heavy-load

The HMS40 series is a heavy-duty linear guide rail module designed for extended travel in CNC machines and high-precision 3D printers. It combines reinforced MGN12 rails with a NEMA23 56 mm motor to deliver smooth, accurate motion across long strokes. Ideal for gantry systems and large-scale automation where precise linear motion over a long distance is required.

✅ Maximum stroke: 1200 mm (47.2 in)
✅ Horizontal load: up to 20 kg (44 lbs)
✅ Vertical load: up to 15 kg (33 lbs)
✅ Lead: 10 mm

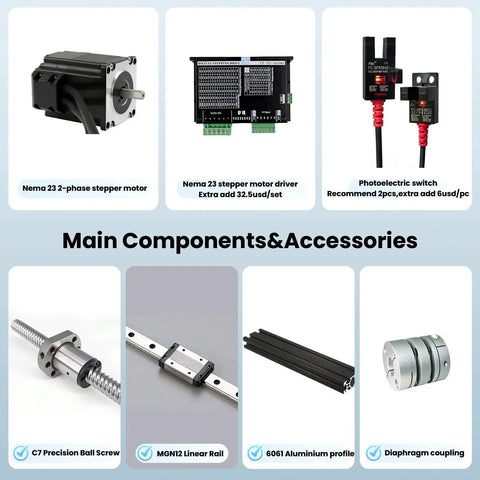

✅ Rails: reinforced MGN12 for stability and smooth operation under dynamic load
✅ Motor: NEMA23, 56 mm

💡 What is a long-stroke linear guide rail module used for in CNC machines and 3D printers?

It's handy for precise, long-travel motion in large automated setups.

- Provides precise, smooth motion over long travel for large gantries.
- Supports heavy loads in horizontal and vertical directions.
- Uses reinforced MGN12 rails for rigidity and low deflection.
- Includes a NEMA23 56 mm motor for reliable torque.
