Mini Linear Rail Guide Small Sliders Lead Screw T6x1 with Nema 11 Stepper Motor for CNC Router Parts X Y Z Linear Stage Actuator 50mm Effective Stroke (Size:50mm)

Mini Linear Rail Guide with NEMA 11 Stepper Motor - 50mm Travel, T6x1 Lead Screw, Compact X/Y/Z Linear Stage for DIY CNC Routers (1 Kit)

✔️ Compact, ready-to-install linear slide unit for precise motion in small CNC builds

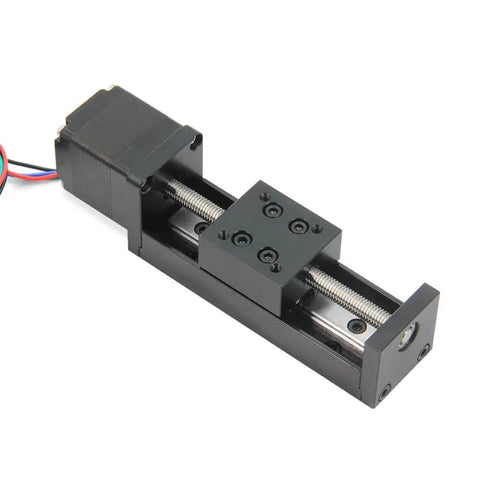

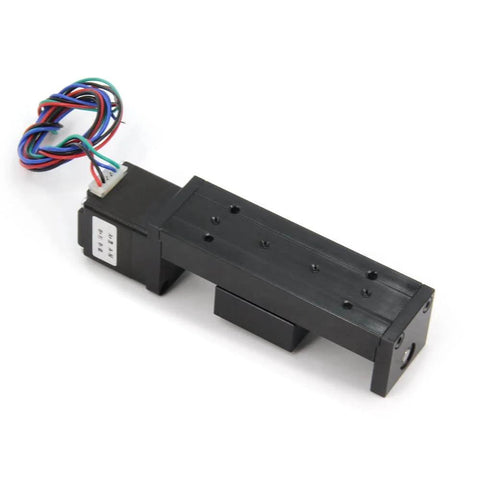

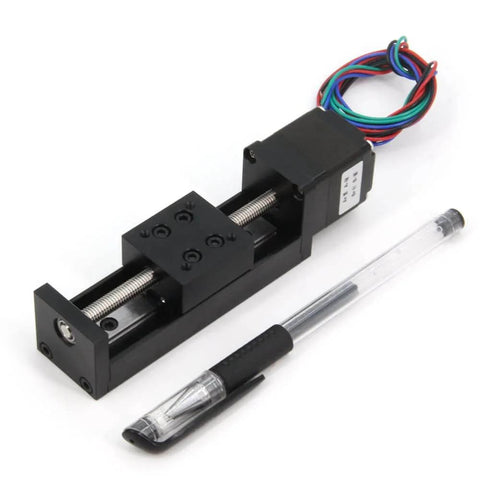

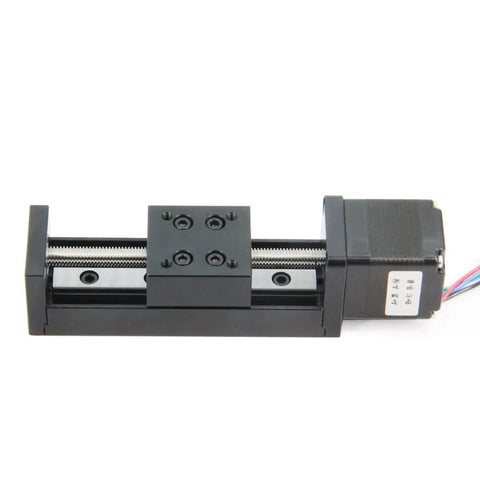

This mini linear rail guide is a compact linear slide unit designed for precise motion in small CNC routers, inspection benches, optical labs, and precision measurement equipment. Pack includes 1 kit with a Linear Stage Actuator and NEMA11 Stepper Motor for easy integration into X, Y, and Z axes.

✅ Effective Travel: 50 mm

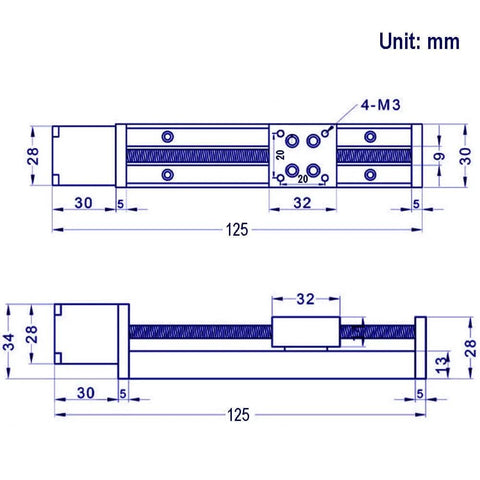

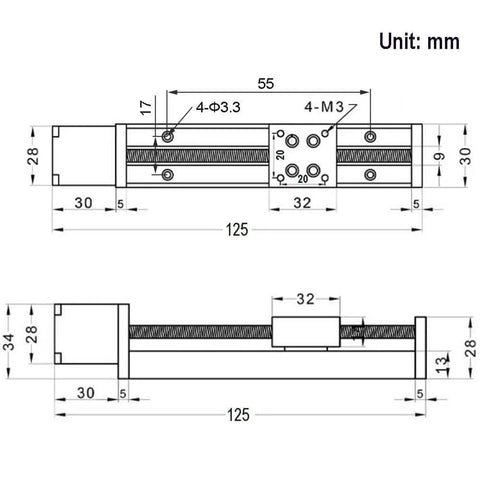

✅ Total Length: 125 mm
✅ Lead Screw: T6x1 (6 mm diameter, 1 mm lead)
✅ Material: metal with surface oxidation treatment for high hardness and durability
✅ Repeat Positioning Accuracy: ±0.05 mm
✅ Horizontal Load Capacity: 2.5 kg
✅ Vertical Load Capacity: 1 kg
✅ Speed: 0-10 mm/s
✅ Weight: about 272 g
✅ Package Included: 1 Kit Linear Stage Actuator with NEMA11 Stepper Motor
✅ Stepper Motor Specifications: 24 V, 1.8 degree step, holding torque 6 N·cm, current 0.6 A, resistance 5.5 Ω, inductance 3.2 mH

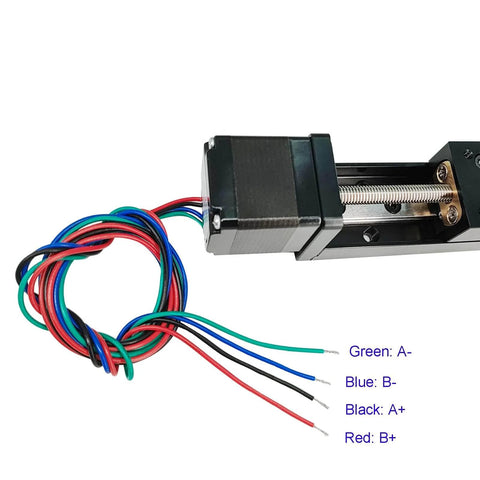

✅ Wiring: Black A+, Green A-, Red B+, Blue B-
✅ Important: Ensure you have a compatible drive and controller; motor won't run on its own

This compact setup delivers precise, repeatable motion for tight-space CNC routing, accurate displacement tasks, and reliable positioning in hobby and light industrial applications.

💡 What is a mini linear rail guide with a NEMA 11 stepper motor best used for in a compact DIY CNC router?

This mini linear rail guide provides smooth, precise motion in a compact footprint. It is ideal for small CNC projects and DIY rigs.

• Compact footprint fits desktop and small-form machines
• High repeat accuracy supports repeatable cuts and measurements
• Easy integration with standard stepper drivers and controllers
• Suitable for X, Y and Z axis positioning in CNC, inspection fixtures, and lab setups
