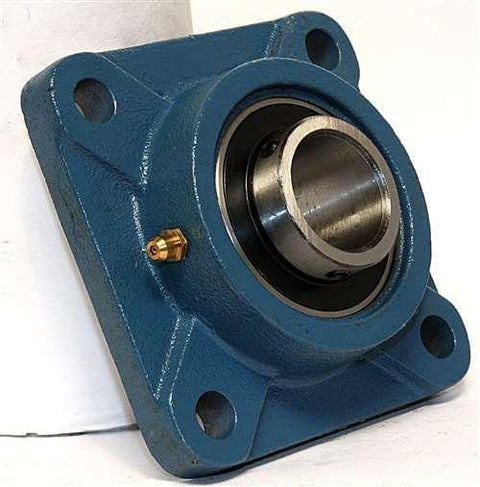

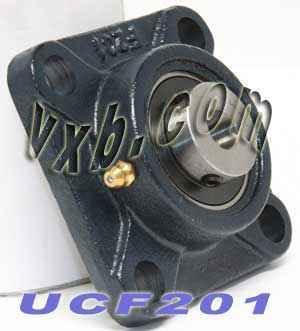

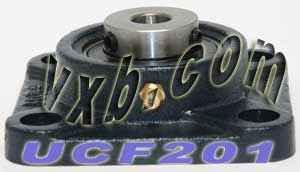

12mm Bearing UCF201 + Square Flanged Cast Housing Mounted Bearing
$53.28 CAD
$71.92 CADyou save $18.64 CAD
SKU: Kit7352
UPC: 00193019061589
UPC: 00193019061589
Item: UCF201 Bearing
Type: Mounted Bearings
Bolt Size: M10
Shaft Diameter: 12mm
Basic Load (Cr): 12,800 N
Type: Mounted Bearings
Bolt Size: M10
Shaft Diameter: 12mm
Basic Load (Cr): 12,800 N
| UCF201 12mm Mounted Bearing One Bearing |
UCF201 12mm Mounted Bearing, measures an inner diameter of 12mm.
|

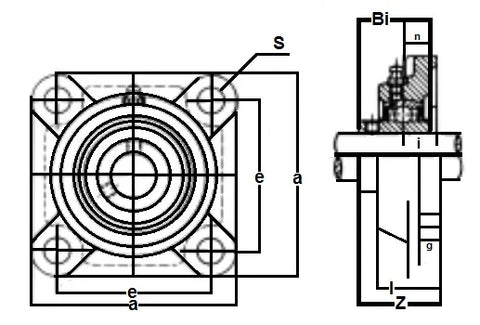

| Dimensions (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|
| a | e | i | g | l | s | z | Bi | n |
| 85.73 | 63.9 | 15.08 | 11.9 | 25.4 | 11.9 | 33.34 | 31 | 12.7 |
