15mm x 9' feet = 108" inch Rail System Square Slide Unit Linear Motion
UPC: 00193019136447
Rail length: 9' feet = 108" inches
Block Dynamic Load Rating: 11.38 KN
Block Static load rating: 23.31 KN
High repeatability and smooth running performance
15mm Linear Guideway System - 9 ft Rail with Block
✔️ 108" Rail - Square Block - High Load Capacity

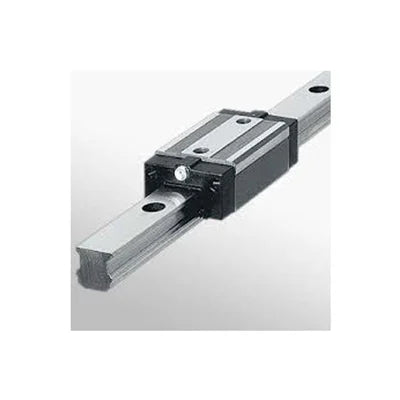

This complete linear guideway system features a 15mm diameter rail with a 108" length and one pre-installed square carriage block. Designed for automation, CNC, and precision motion applications, this setup delivers high stiffness, repeatability, and smooth linear movement under demanding loads.
✅ Rail diameter: 15mm
✅ Rail length: 108" inches (9 feet)
✅ Block type: Square carriage block (HYH15CA)
✅ Dynamic load rating: 11.38 kN
✅ Static load rating: 23.31 kN
✅ Application: CNC machines, automation lines, precision equipment
✅ Shipping: Domestic only - We do not offer international shipping
✅ Quantity: One complete rail with block

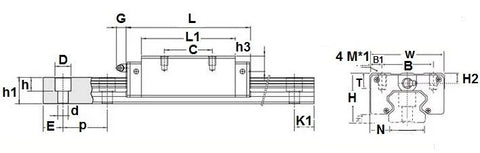

Rail Dimensions (HYR15-4000):
| H | H1 | N | d | D | E | P |
|---|---|---|---|---|---|---|
| 28 | 4.3 | 9.5 | 4.5 | 7.5 | 20 | 60 |
Block Dimensions (HYH15CA):
| W | B | B1 | C | L1 | L | K1 | G | Mx1 | T | H2 | H3 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 34 | 26 | 4 | 26 | 39.4 | 61.4 | 10 | 5.3 | M4x5 | 6 | 7.95 | 7.7 |
💡 Why choose a linear guideway system over a round rail setup?
Square rail systems offer better rigidity, higher load capacity, and superior repeatability - making them ideal for demanding CNC and automated machinery where precision matters most.
Ready to add accuracy and strength to your project? Order this guideway system now and streamline your motion with confidence!
