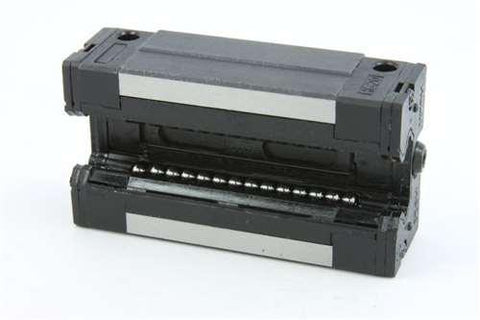

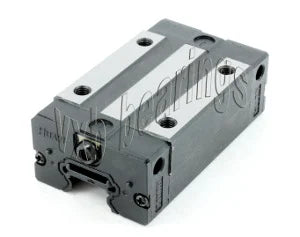

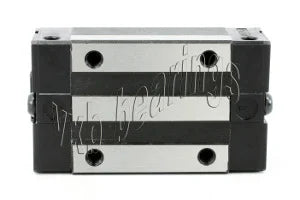

20mm Square Slide Unit Block Linear Motion
UPC: 00193019038277
Type: Linear Motion Systems
Block Dynamic load rating: 17.75 KN
Block Static load rating: 37.84 KN
Quantity: One Block
20mm Square Linear Slide Block for Rail
✔️ Compact Motion Guide - High Load Capacity
This 20mm square linear motion block is designed to slide smoothly along a 20mm rail. Ideal for CNC routers, 3D printers, and automation systems where precise and rigid motion is key. Built for long service life with excellent load performance.
✅ Model: HYH20CA
✅ Pack Size: 1 Block
✅ Fits: 20mm Diameter Linear Rail
✅ Dynamic Load Rating: 17.75 kN
✅ Static Load Rating: 37.84 kN

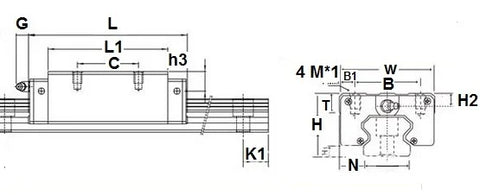

Block Dimensions (mm):
| W | B | B1 | C | L1 | L | K1 | G | Mx1 | T | H2 | H3 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 32 | 6 | 36 | 50.5 | 77.5 | 12.25 | 12 | M5x6 | 8 | 6 | 7 |
💡 Why use a square linear guide block in precision setups?
Square blocks offer more surface area contact, which boosts stability and performance:
-
Excellent load distribution in all directions
-
Higher stiffness for precision tools
-
Smooth motion under heavier payloads
-
Ideal for compact, high-accuracy machines
Grab this block and give your motion system the upgrade it deserves, sturdy, smooth, and built to last!
