40mm Linear Motion Ball Bearing/Bushing LMF40UU
UPC: 00193019214848
Type: Linear Ball Bearing
Size: 40mm x 60mm x 80mm
Inner Diameter: 40mm
Outer Diameter: 60mm

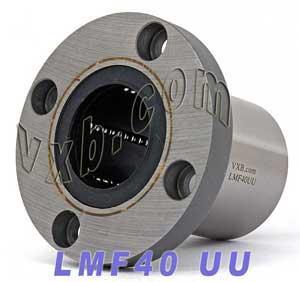

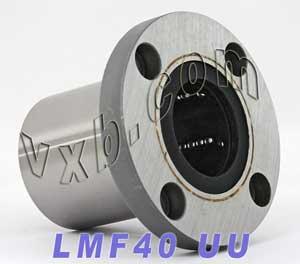

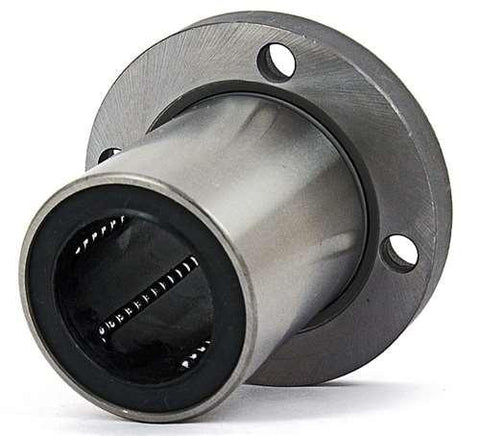

LMF40UU Linear Ball Bearing
✔️ Flanged Type - For 40mm Shaft - 40mm x 60mm x 80mm
The LMF40UU linear ball bearing is built for smooth motion along 40mm shafts, featuring a flanged round housing for secure mounting. With built-in rubber seals and a rugged steel body, it’s perfect for CNC, automation, and guided rail systems where precision and support matter.
âś… Fits 40mm linear motion shafts
âś… Flanged housing for easy surface mounting
âś… Built-in rubber seals to keep out dust and debris
âś… Inner diameter: 40mm
âś… Outer diameter: 60mm
âś… Length: 80mm
âś… Dynamic load rating: 2,160 N
âś… Static load rating: 4,020 N
âś… Sold as 1 linear bearing

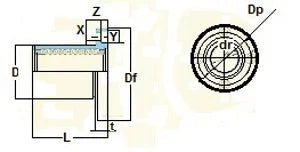

Dimensions Table (mm):
| ID (dr) | OD (D) | Length (L) | Flange Dia. (Dp) | Bolt Circle (X) | Bolt Hole (Y) | Hole Diameter (Z) |
|---|---|---|---|---|---|---|
| 40 mm | 60 mm | 80 mm | 96 mm | 78 mm | 14 mm | 8.1 mm |
đź’ˇWhen should you use a flanged linear bearing like LMF40UU?
Flanged linear bearings bring stability and guided motion to vertical and horizontal setups:
-
Secure mounting for guided rails and machine frames
-
Smooth motion for CNCs, 3D printers, and robotics
-
Protect internal balls from dust with sealed design
-
Great for long travel with minimal friction
Upgrade your linear system with this tough, smooth glider - add it to your cart and get rolling right!
